H.265 Decoder

The H.265 (HEVC – High Efficiency Video Coding) Decoder IP core delivers high-performance video decompression for next-generation…

Contact Provider Request Datasheet

Overview

The H.265 (HEVC – High Efficiency Video Coding) Decoder IP core delivers high-performance video decompression for next-generation visual applications, including broadcast, surveillance, automotive, and consumer electronics. It supports real-time decoding of ultra-high-definition (UHD) video streams, up to 4K and 8K resolutions, while significantly reducing bandwidth and storage requirements without compromising video quality.

The IP core supports Main, Main 10, and Main Still Picture profiles, ensuring broad compatibility with industry, standard H.265/HEVC content. Advanced features such as error concealment, low-latency processing, and support for various chroma formats (4:2:0, 4:2:2, 4:4:4) make it ideal for demanding multimedia applications.

Designed for flexibility, the IP core is highly configurable to meet specific design requirements, supporting both ASIC and FPGA implementations while optimizing for area, power, and performance.

Key features

  • High-Efficiency Video Decoding – Supports full ITU-T H.265 | ISO/IEC 23008-2 HEVC decoding, enabling up to 50% bitrate savings compared to H.264
  • Ultra-High Resolution Playback – Capable of decoding resolutions up to 16384×8640 at 120 fps for 4K, 8K, and UHD applications
  • Flexible Profile and Bit Depth Support – Decodes Main, Main10, and Main Still Picture profiles with 8-bit to 16-bit depth support for wide color range fidelity
  • Robust Prediction and Transform Handling – Supports intra and inter prediction, CABAC decoding, SAO, deblocking filters, and transform skip modes
  • Chroma and Format Flexibility – Handles 4:4:4, 4:2:2, 4:2:0 chroma formats, and monochrome (4:0:0) decoding
  • Optimized for Real-Time Applications – Low-latency, high-throughput architecture suitable for broadcast, surveillance, automotive, and mobile systems

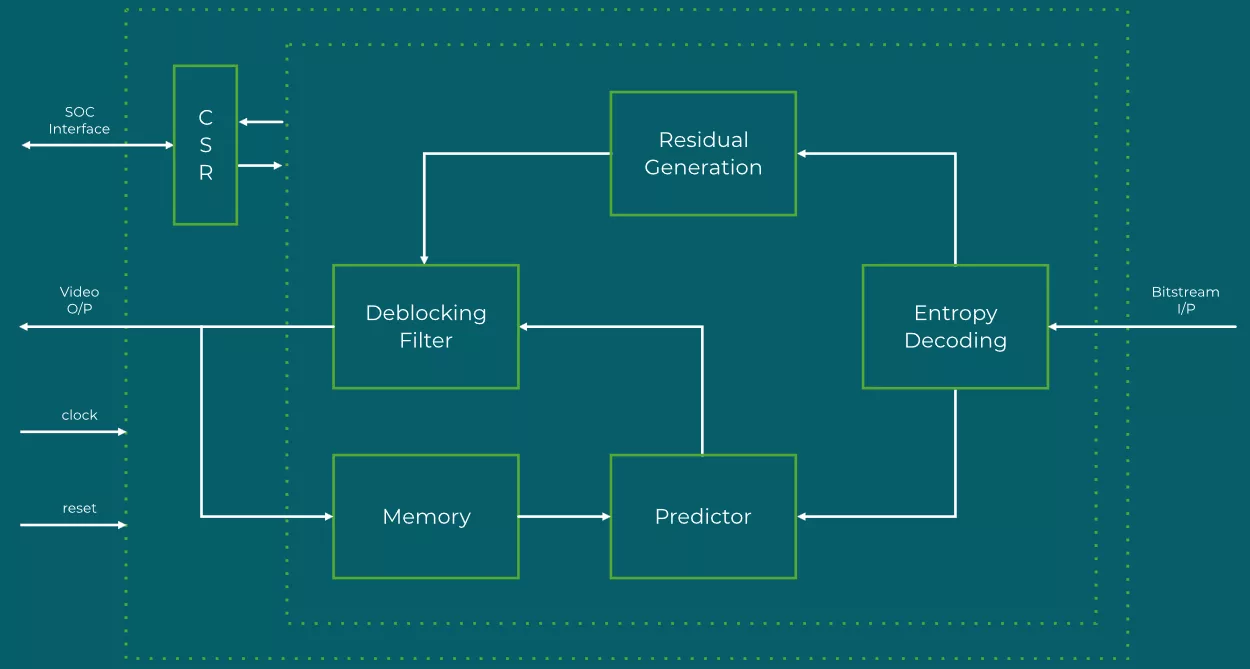

Block Diagram

H.265 Decoder block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
H.265 Decoder
Vendor
SmartDV Technologies

Provider

SmartDV Technologies
HQ: India
