Vendor: Qualitas Semiconductor Category: Single-Protocol PHY

Ethernet PHY IP

The 56G/64G PAM4 SERDES hard macro IP delivers a high-performance, low-power solution for high-speed serial interfaces.

Contact Provider Request Datasheet

Overview

The 56G/64G PAM4 SERDES hard macro IP delivers a high-performance, low-power solution for high-speed serial interfaces. Supporting data rates up to 64Gbps per lane, it is optimized for next-generation Ethernet, PCIe, and custom high-speed links in AI accelerators, networking switches, and chiplet-based SoCs.With support for PAM4 and NRZ signaling, advanced equalization, and scalable lane architecture, this IP ensures robust signal integrity across long-reach and high-loss channels.

Key features

  • Compliant to 802.3 Ethernet specification - 200GBASE-KR4, 200GBASE-CR4, 100GBASE-KR4, 100GBASE-CR4, 100GBASE-KR2, 100GBASE-CR2, 50GBASE-KR, 50GBASE-CR, 40GBASE-KR4, 40GBASE-CR4, 25GBASE-KR, 25GBASE-CR, 10GBASE-KR, 10GBASE-CR
  • Data rate supported - Ethernet: NRZ 3.125 - 26.5625Gb/s, PAM4 53.125Gb/s
  • DSP-based architecture using high-performance ADC/DAC for RX/TX
  • Lane configurations: X1, X2 or X4
  • PCS in soft-macro and PMA in hard-macro
  • Reed / Solomon Forward Error Correction(RS FEC)
  • MCU and firmware-driven Link Training(LT)/Auto Negotiation(AN) delivers flexible functionality and tuning.
  • RX eye-opening monitor
  • Loopback feature capable of generating and checking PRBS patterns

Block Diagram

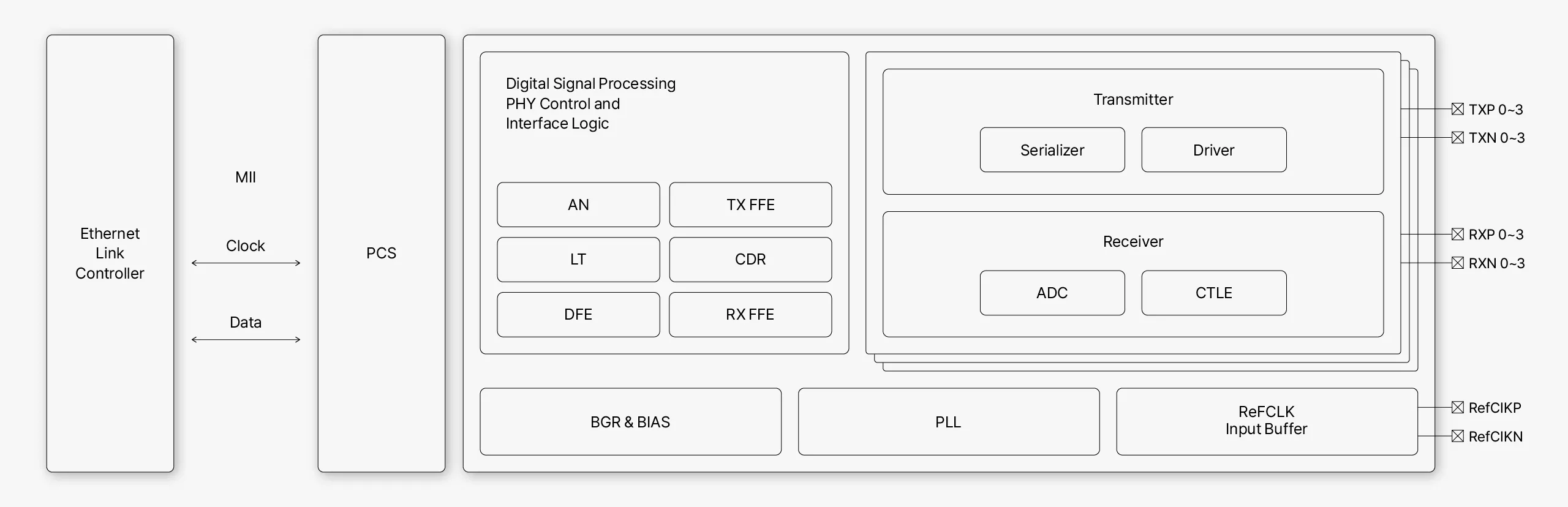

Ethernet PHY IP block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Ethernet PHY IP
Vendor
Qualitas Semiconductor
Type
Silicon IP

Provider

Qualitas Semiconductor
HQ: South Korea
Qualitas Semiconductor is a leader in high-speed interconnect technology, which is at key infrastructure of the 4th Industrial Revolution, Encompassing AI, mobile devices, automotive systems, and displays. We specialize in high-speed interconnect circuit design, as well as ultra-fine semiconductor process design and verification. We operate our business through the licensing of high-speed interface IP and by providing comprehensive design services. Moreover, we have established a robust design methodology to ensure high-reliability in ultra-fine semiconductor processes. With a proven track record in developing and mass-producing cutting-edge semiconductors, our expertise spans the most advanced technologies.
