10G TBI (PCS) Ethernet Verification IP

The 10G TBI Ethernet Verification IP is compliant with IEEE 802.3 specifications and verifies MAC-to-PHY layer interfaces of desi…

Contact Provider Request Datasheet

Overview

The 10G TBI Ethernet Verification IP is compliant with IEEE 802.3 specifications and verifies MAC-to-PHY layer interfaces of designs with a 10G Ethernet interface 8b/10b PCS. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment. XGMII TBI verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethenet product.

10G TBI (PCS) Ethernet Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

10G TBI (PCS) Ethernet Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Key features

  • Follows 10G specification as defined in IEEE 802.3
  • Supports all types of 8b/10b PCS TX and RX errors insertion/detection.
    • Oversize, undersize, inrange, out of range Packet size errors
    • Missing SPD/EPD/SFD framing errors
    • SPD/SFD on wrong lane
    • CRC Error
    • Lane skew insertion
    • Disparity error injection
    • Invalid /D/ and /K/ character injection
    • Variable preamble and IPG insertion
  • Comes with 8b/10b PCS Tx BFM, 8b/10b PCS Rx BFM, and 8b/10b PCS Monitor
  • Monitor supports detection of all protocol violations.
  • Supports Pause frame generation and detection.
  • Built in coverage analysis.

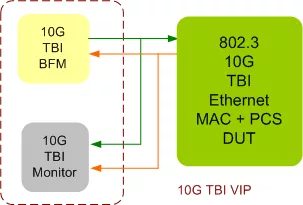

Block Diagram

Ethernet 10G TBI (PCS) VIP block diagram

Benefits

  • Faster testbench development and more complete verification of 10G 8b/10b designs.
  • Easy to use command interface simplifies testbench control and configuration of 10G 8b/10b TX and RX.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

What’s Included?

  • Complete regression suite (UNH) containing all the testcases.
  • Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Ethernet 10G TBI (PCS) VIP
Vendor
SmartDV Technologies

Provider

SmartDV Technologies
