eDP 2.0 Verification IP

The eDP 2.0 Verification IP provides an effective & efficient way to verify the components interfacing with the eDP interface of …

Contact Provider Request Datasheet

Overview

The eDP 2.0 Verification IP provides an effective & efficient way to verify the components interfacing with the eDP interface of an ASIC/FPGA or SoC. The eDP VIP is fully compliant with the Standard eDP Version 2.0 specifications from VESA. This VIP is a lightweight VIP with an easy plug-and-play interface, so that there is no hit on the design time and the simulation time.

Key features

  • Fully compliant to VESA Embedded DisplayPort (eDP) Standard 2.0 Specification
  • Supports power saving feature:- Panel Self Refresh features PSR/PSR2, PR, Adaptive sync, and backlight control.
  • Supports HDCP version 1.4, 2.2 and 2.3
  • Supports Alternative Scrambler Seed Reset (ASSR)
    • TPS4 with ASSR is supported
  • Supports Advanced Link Power Management (ALPM)
    • Power Down states (Sleep and Standby)
    • Wake state (fast wake timing)
    • Supports updated ALPM requirement for DSC in eDP devices
  • Support RBR, HBR, HBR2, HBR3 (8b/10b) and UHBR10, UHBR13.5, UHBR20 (128b/132b) main link rates.
  • Supports 8b/10b and 128b/132b main link encoding.
  • Support ASSR with 128b/132b link encoding.
  • Supports 1, 2 and 4 lanes of operation on both eDP devices
  • Supports Aux Frame Sync for Active Video Timing Synchronisation
  • Supports GTC-based video timing synchronisation
  • Supports PSR (Panel Self Refresh) features
    • PSR Entry/Exit operation
    • Error Management/Recovery mechanism
  • Supports PSR2 operations
    • Self-refresh with selective updates supported
    • PSR2 States is supported
    • PSR2 commands and data transport are supported
  • Supports PSR SDP
  • Supports Multi-SST Operations (MSO)
    • Multi-SST Operation with Two SST Links, One Lane Each (2x1)
    • Multi-SST Operation with Two SST Links, Two Lanes Each (2x2)
    • Multi-SST Operation with Four SST Links, One Lane Each (4x1)
  • Supports DSC/FEC for 8b/10b and 128b/132b main link.
  • Supports Display Backlight Control via AUX
  • Support transport of Multi-touch data over AUX
  • Supports all operations of Main Link, Aux and HPD signalling
  • Support Link Training-Tunable PHY Repeaters (LTTPRs).
  • Callback support in BFM to provide user control
  • Supports Dynamic as well as Static Error Injection scenarios
  • Strong Protocol Monitor with real time exhaustive, programmable checks
  • Supports dynamically configurable modes
  • On-the-fly protocol checking using protocol check functions, static and dynamic assertions
  • Built in Coverage analysis.
  • Graphical analyzer to show transactions for easy debugging

Block Diagram

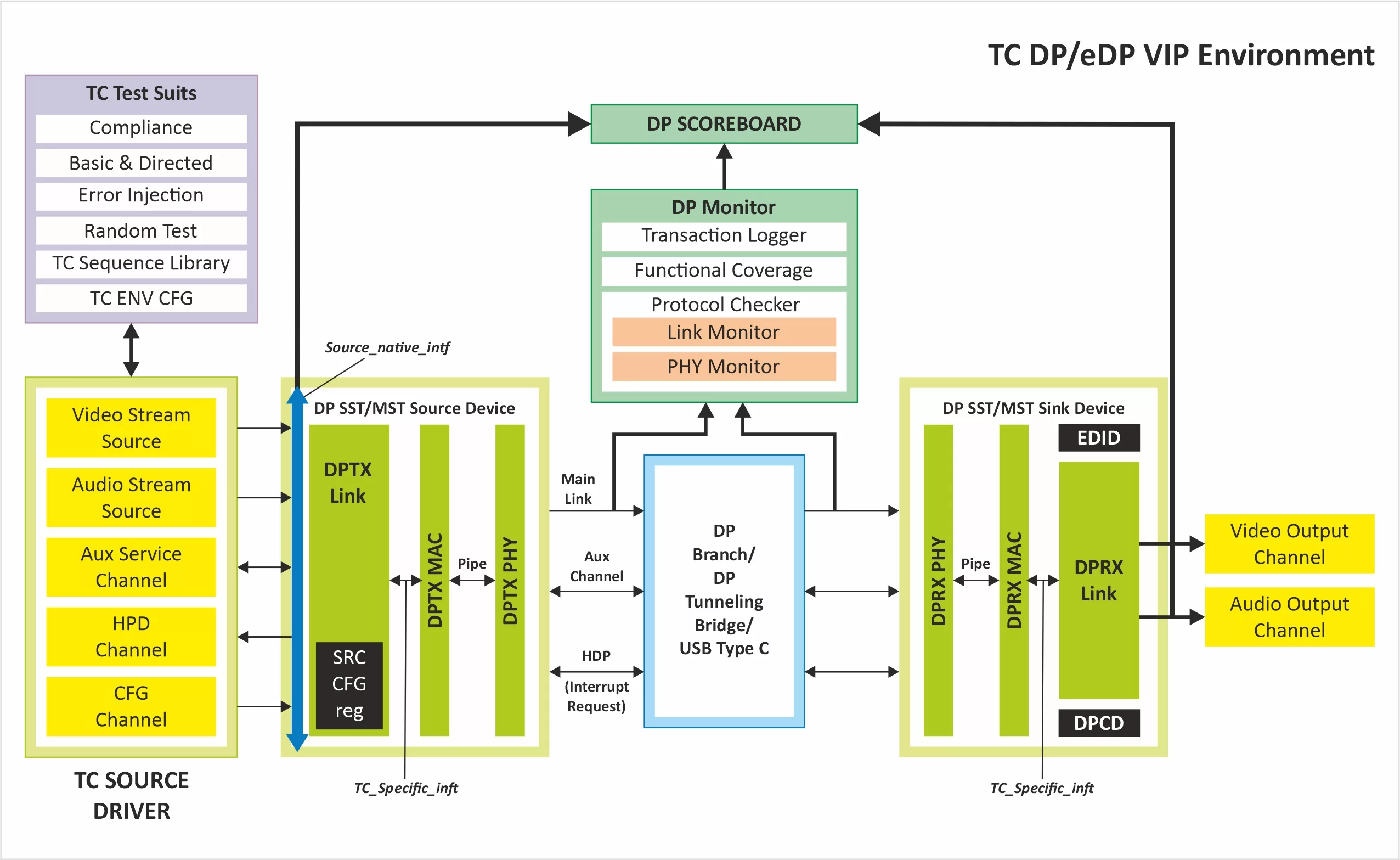

eDP 2.0 block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • DisplayPort eDP BFM's for:
    • Source - Link Layer
    • Source - MAC Layer
    • Source - PHY Layer
    • Sink - Link Layer
    • Sink - MAC Layer
    • Sink - PHY Layer
    • Branching Devices
  • DisplayPort layered monitor & scoreboard
  • Test Environment & Test Suite:
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
    • Compliance Test Suite
    • User Test Suite
  • Integration guide, user manual, and release notes
