Vendor: Truechip Solutions Category: Displayport

DisplayPort 2.1 Verification IP

The DisplayPort Verification IP provides an effective & efficient way to verify the DP components of an IP or SoC.

Contact Provider Request Datasheet

Overview

The DisplayPort Verification IP provides an effective & efficient way to verify the DP components of an IP or SoC. The VIP is fully compliant with DP-2.1 specifications. The VIP is lightweight with easy plug-and-play components so that there is no hit on the design cycle time.

Key features

  • Supports Isochronous transport services over the Main-Link.
  • Capable Link and device management services over the AUX_CH.
  • Can handle AUX transaction to access the DisplayPort Configuration Data (DPCD) address.
  • Capable of handling multi stream packet and single stream packet data transmission.
  • Supports 128b/132b DPStream Symbol-to-MTP Mapping Rate Control Mandates.
  • Supports hot plug and unplug detection and link status failure detection.
  • Capable of handling Panel Replay Mode.
  • Supports adaptive-Sync Operation for VESA Adaptive Sync.
  • Can handle payload bandwidth allocation if stream is added or removed in run time.
  • Supports Secondary Data Packets .
  • Supports Enhanced and non enhanced Framing mode.
  • Capable of handling Video Transmission with following options
    • MSA/Ignore MSA Video Timing and/or VSC
    • TU generation with and without FEC Encoding/Decoding
    • CTA, CVT and DMT Video timing standard
    • RGB, YCbCr(444,422,420), ITU-R BT.601, ITU-R BT.709,ITU-R BT.2020, and Adobe RGB colorimetry
    • Variable color depth upto 16 bpc.
    • Interlaced and progressive video is supported.
    • Horizontal Blanking Expansion and Reduced blanking timing as applicable
  • Capable of handling various types of Audio on variable frequency, applicable per CTA standard
    • LPCM Audio for upto 8 channel
    • One bit Audio for upto 8 channel
    • 3D LPCM Audio for upto 32 channel
  • Supports half duplex mode of operation for aux.
  • Connected to link layer through Truechip specific System Interface.
  • Supports data width according to the PIPE configuration.
  • Maintains link training and Link Status Monitor.
  • Supports Reed-Solomon (RS) FEC encoding/decoding as per the specification.
  • Supports the scrambling/descrambling process as per the specification.
  • Supports 128b/132b and 8b/10B encoding/decoding as per data rate.
  • Capable of Manchester-II coding for Aux Transactions.
  • Supports AUX-less ALPM Signaling.
  • Option of bypass training is supported
  • Supports ARVR SDP
  • 8b/10b DP MST Mode Stream Symbol-to-MTP Mapping Rate Control Mandates
  • SDP-only Transport without Main Video Stream 128b/132b
  • No SDP or Main Video Stream 128b/132b
  • SDP Error Detection in 128b/132b
  • 128b/132b DP stream Symbol-to-MTP Mapping Rate Control Mandates
  • Adaptive-Sync Operation for VESA AdaptiveSync
  • Panel Replay Function

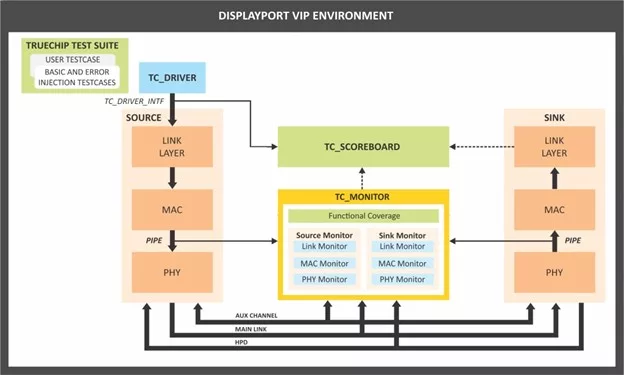

Block Diagram

DP 2.1 block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • DisplayPort 1.4a BFM's for:
    • Source - Link Layer
    • Source - MAC Layer
    • Source - PHY Layer
    • Sink - Link Layer
    • Sink - MAC Layer
    • Sink - PHY Layer
    • Branching Devices
    • LTTPR
  • DisplayPort layered monitor & scoreboard
  • Test Environment & Test Suite:
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
    • Compliance Test Suite
    • User Test Suite
  • Integration Guide, User Manual and Release Note

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
DP 2.1
Vendor
Truechip Solutions

Provider

Truechip Solutions
HQ: USA
Truechip is a leading provider of Design and Verification solutions – which help you to accelerate your design, lowering the cost and the risks associated in the development of your ASIC, FPGA and SoC. Truechip is a privately held company, with a global footprint and with a strong and experienced leadership team. Truechip was established in 2008 with a Mission to:
  • To create world class Verification IP Solutions
  • To provide expert consultancy to ASIC & SoC Design companies
  • To design SOCs from Architecture to Working Silicon
Our Vision is to:
  • To be the leading provider of Semiconductor IP Solutions
  • To be a one-stop-shop for Design and Verification
Our Guiding Principles are:
  • Customer Success
  • Commitment to Quality
    • Quality of Products
    • Quality of Engineers
  • Best in class Customer Support
  • Ethics and Integrity
We at Truechip leverage the extensive domain knowledge and expertise from current associations to provide complete set of design and verification solutions to our customers.
