CPRI Altera® FPGA IP
The Common Public Radio Interface (CPRI) Altera® FPGA IP core implements the CPRI Specification V7.0.
Overview
The Common Public Radio Interface (CPRI) Altera® FPGA IP core implements the CPRI Specification V7.0. CPRI is a high-speed serial interface for network radio equipment controllers (REC) to receive data from and provide data to remote radio equipment (RE). The IP core targets high-performance, remote radio network applications. You can configure the CPRI Altera® FPGA IP core as an RE or an REC.
Key features
- Compliant with the Common Public Radio Interface (CPRI) Specification v7.0 (2015-10-09) Interface Specification.
- Supports radio equipment controller (REC) and radio equipment (RE) module configurations.
- Configurable CPRI line bit rate auto-rate negotiation support using Altera® FPGA on-chip high-speed transceivers.
- Configurable and runtime programmable synchronization mode: host port or agent port on a CPRI link.
- Transmitter (Tx) and receiver (Rx) deterministic latency and delay measurement and calibration. Note: Compliant with the CPRI Specification requirements R-19, R-20, R-20A, R-21, and R-21A.
- Configurable CPRI communication line bit rate (to 0.6144, 1.2288, 2.4576, 3.0720, 4.9152, 6.144, 8.11008, 9.8304, 10.1376, 12.16512 or 24.33024 Gbps) using Altera® FPGA on-chip high-speed transceivers.
Block Diagram

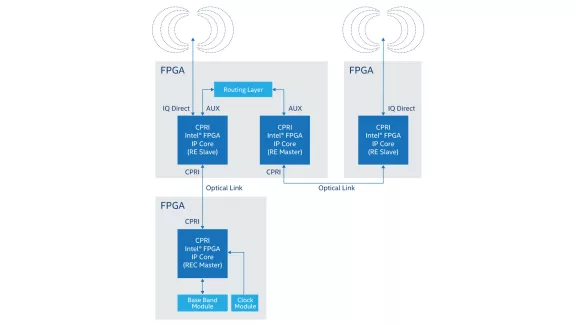

CPRI Altera® FPGA IP block diagram
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
CPRI Altera® FPGA IP
Vendor
Altera
Provider
Altera
HQ:
USA
Altera, an Intel Company, provides leadership programmable solutions that are easy-to-use and deploy in applications from the cloud to the edge, offering limitless AI possibilities. Our end-to-end broad portfolio of products including FPGAs, CPLDs, Intellectual Property, development tools, System on Modules, SmartNICs and IPUs provide the flexibility to accelerate innovation.
Our innovation of programmable logic started in 1983 in Silicon Valley. In 1984, Altera unveiled the world’s first programmable logic device capable of being programmed, erased, and reprogrammed altering the future of innovation.
