The CPRI Verification IP provides an effective & efficient way to verify the components interfacing with CPRI interface of an IP …
Overview
The CPRI Verification IP provides an effective & efficient way to verify the components interfacing with CPRI interface of an IP or SoC. The CPRI VIP is fully compliant with CPRI V7.1 specification with backward compatibility to previous versions. This VIP is lightweight with an easy plug -and- play interface so that there is no hit on the design cycle time.
Key features
- Fully compliant to CPRI specification V7.0 with backward compatibility
- Supports following line bit rates of CPRI specifications
- 614.4 Mbit/s, 1228.8 Mbit/s, 3072.0 Mbit/s, 4915.3 Mbit/s, 6144.0 Mbit/s, 9830.4 Mbit/s, 8110.08 Mbit/s, 10137.6 Mbit/s, 12165.12Mbit/s
- Supports 8B/10B and 64B/66B line coding and scrambling/ descrambling and RSFEC.
- Supports Physical Link Layer(Layer1) and Data Link Layer(Layer2)
- Supports all 3 Service Acess Points(SAPs) at Layer2
- Control and Management Plane transport mechanisms
- User Plane data
- synchronization
- Provides start up sequence state machine for REC and RE
- Performs L1 synchronization and line bit rate negotiation.
- Supports protocol version negotiation.
- Supports C&M channel bit rate negotiation
- Supports Fast C&M channel based on Ethernet for each line bit rate.
- Support slow C&M channel based on HDLC with following bit rates-
- 240 kbit/s, 480 kbit/s, 960 kbit/s, 1920 kbit/s, 2400 kbit/s, HDLC bit rate negotiation on higher layer
- Supports L1 inband protocol.
- Supports 100BASE-X PCS for Ethernet channel.
- Supports interface for vendor specific information.
- Supports passive link(Disabling C&M channel)
- Supports detection of LOS, LOF, RAI and SDI.
- Supports different IQ data sampling widths-
- Downlink -> 8, 9, 10.....20 bits
- Uplink -> 4, 5, 6....... 20 bits
- Supports different oversampling ratios-
- Downlink -> 1, 2
- Uplink -> 2, 4
- Scrambler Error insertion supported
- Supports test pattern generation and checking.
- Callback support to provide user control.
- Rich set of configuration and parameters.
- Supports Dynamic as well as Static Error Injection scenarios.
- Built-in Coverage analysis.
- Graphical analyzer to show transactions for easy debugging

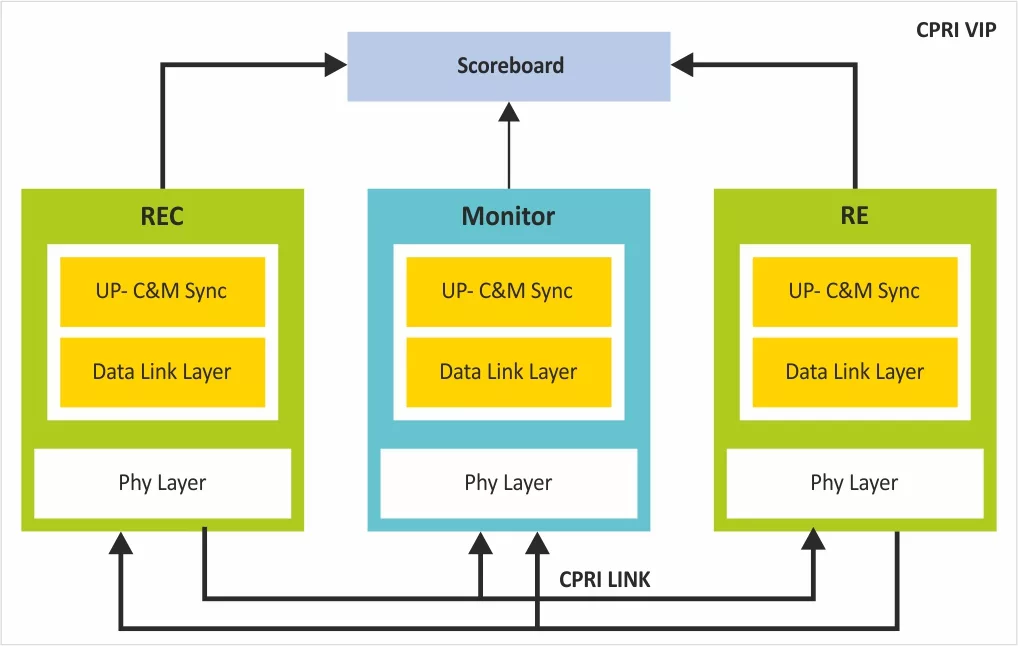

Block Diagram
CPRI/eCPRI block diagram
Benefits
- Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
- Unique development methodology to ensure the highest levels of quality
- Availability of Conformance and Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and cover points with connectivity examples for all the components
- Consistency of interface, installation, operation, and documentation across all our VIPs
- Provide complete solutions and easy integration in IP and SoC environment
What’s Included?
- CPRI Nodes
- REC Node
- RE Node
- CPRI monitor & CPRI Scoreboard
- Test environment and Test Suite-
- Basic and Directed Protocol Tests
- Random Tests
- Error Scenario Tests
- Assertions & Cover Point Tests
- User Test Suite
- Integration Guide, User Manual, and Release Note
