Vendor: Cadence Design Systems, Inc. Category: Soundwire

Controller for MIPI Soundwire

Audio data transport The Controller IP for MIPI® SoundWire® v1.2 is a fully verified, configurable, digital core that is complian…

Contact Provider Request Datasheet

Overview

Audio data transport

The  Controller IP for MIPI® SoundWire® v1.2 is a fully verified, configurable, digital core that is compliant with the MIPI Alliance SoundWire specification. It is an ideal solution for transporting audio and related data from baseband or application processors to audio devices.

Key features

  • MIPI compliant peripheral controller with multi-lane capability
  • APB Peripheral interface for control port and manager configuration registers
  • APB Initiator interface for external user defined registers

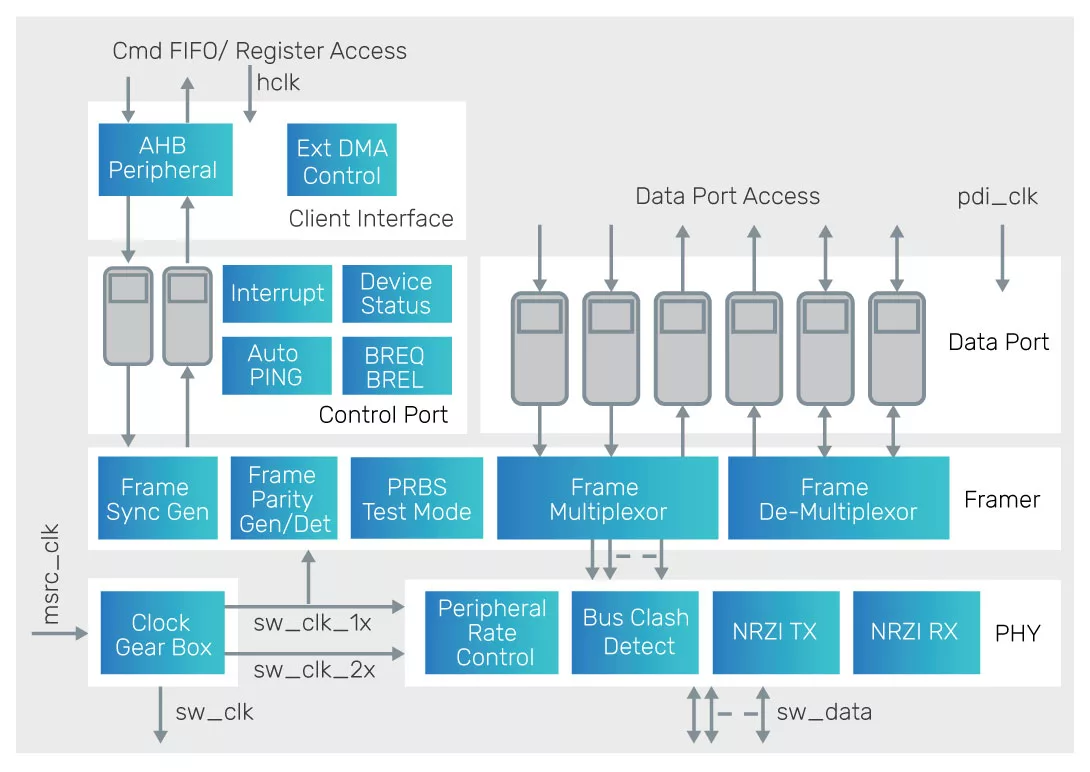

Block Diagram

Controller for MIPI Soundwire block diagram

Benefits

  • Full-Featured and Highly Configurable IP Core
    • Area-customized for each application
  • Complete Solution
    • Complementary initiator/target

Applications

  • Automotive,
  • Communications,
  • Consumer Electronics,
  • Data Processing,
  • Industrial and Medical,
  • Military/Civil Aerospace,
  • Others

What’s Included?

  • Documentation—implementation specification, user guide, release history
  • Clean, readable, synthesizable Verilog RTL
  • Synthesis scripts
  • Sample verification testbench with integrated BFM, monitors, and sanity tests

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Controller for MIPI Soundwire
Vendor
Cadence Design Systems, Inc.

Provider

Cadence Design Systems, Inc.
HQ: USA
If you want to achieve silicon success, let Cadence help you choose the right IP solution and capture its full value in your SoC design. Cadence® IP solutions offer the combined advantages of a high-quality portfolio, an open platform, a modern IP factory approach to quality, and a strong ecosystem. Now you can tackle IP-to-SoC development in a system context, focus your internal effort on differentiation, and leverage multi-function cores to do more, faster. The Cadence IP Portfolio includes silicon-proven Tensilica® IP cores, analog PHY interfaces, standards-based IP cores, verification IP cores, and other solutions as well as customization services for current and emerging industry standards. The Cadence IP Factory provides you with an automated approach to the customization, delivery, and verification of SoC IP. As a result, you can spend more time on differentiation, with the assurance that you'll meet your performance, power, and area requirements. Choosing Cadence IP enables you to design with confidence because you have more freedom to innovate your SoCs with less risk and faster time to market.
