Vendor: RafaelMicro Category: Bluetooth

Bluetooth 5.0 LE,Zigbee, and Sub-GHz Transceiver

The BLE5ZSUBGS40LP RF IP is designed for SMIC 40nm LP Process.

Contact Provider Request Datasheet
TSMC 40nm ULP eFlash Silicon Proven View all specifications

Overview

The BLE5ZSUBGS40LP RF IP is designed for SMIC 40nm LP Process. It is a cost-effective low power dual-band communication sub-system. It integrates TX/RX Radio (Sub-GHz, BLE 5.0, and Zigbee proprietary solutions), 802.15.4g compliant PHY and low level MAC. BLE5ZSUBGS40LP supports multiple Sub-GHz frequency bands and 2.4 GHz. The optimize modulation provide the good sensitivity in Sub-GHz, Zigbee, and Bluetooth 5 LE solution. The long range mode in Sub-GHz can transfer data over 2 KM.

Key features

  • 1. Sub-GHz bands : up to request
  • 2. BLE 5.0 TX power: +10dBm, RX sensitivity: -98 dBm
  • 3. Sub-GHz TX power: +20 dBm, RX sensitivity: -120 dBm
  • 3. Compliant with 802.15.1, 802.15.4, and 802.15.4g
  • 4. Sub-GHz and 2.4 GHz with separate antenna
  • 5. FSK,2FSK, 2GFSK, GFSK, BPSK, and O-QPSK modulations
  • 6. Sub-GHz TX Current consumption 433MHz: 85mA @ +20dBm
  • 7. Low power: Ideep sleep mode = 0.8uA and Isleep mode = 1.2uA
  • 8. Programmable data rate from 5 Kbps to 2 Mbps
  • 9. RSSI read-out
  • 10. Sub-GHz long range: ~2 KM
  • 11. Internal 32.768 KHz Oscillator
  • 12. Compliant with Bluetooth 5 LE Specification
  • 13. Security : CRC, AES128/196/256
  • 14. Operating Temperature: -40C~85C

Block Diagram

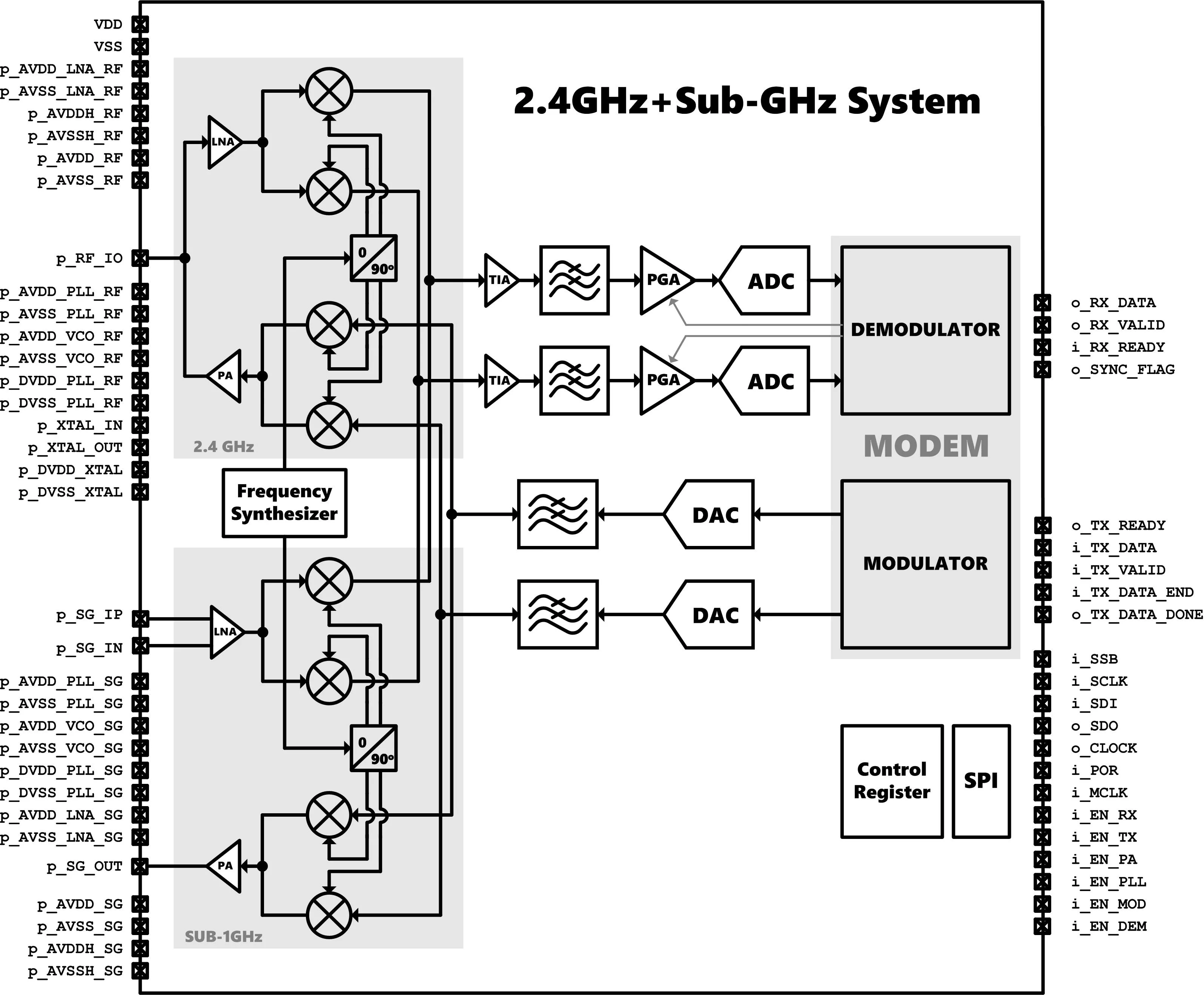

BLE5ZSUBGT40ULP block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 40nm ULP eFlash Silicon Proven

Specifications

Identity

Part Number
BLE5ZSUBGT40ULP
Vendor
RafaelMicro

Provider

RafaelMicro
HQ: Taiwan
Rafael Microelectronics was established in 2006 in Hsinchu, Taiwan. Company started with TV tuner IC and is one of top 3 TV tuner suppliers worldwide. With tuner IC as our foundation in Radio Frequency designs, Rafael extended the market segment to satellite receivers and IoT connectivity subsystem markets with success. Rafael is a RF IC company as well as a RF IP company. Rafael was listed in Taiwan Stock Exchange.
