Bluetooth 5.0 LE and Sub-GHz Transceiver

The BLE5SUBGT40ULP RF IP is designed for TSMC 40nm ULP Process.

Contact Provider Request Datasheet
TSMC 40nm ULP eFlash Silicon Proven View all specifications

Overview

The BLE5SUBGT40ULP RF IP is designed for TSMC 40nm ULP Process. It is a cost-effective low power dual-band communication sub-system. It integrates TX /RX Radio (Sub-GHz, Bluetooth® 5 and 2.4GHz proprietary solutions), 802.15.4g compliant PHY and low level MAC. BLE5SUBGT40ULP supports multiple Sub-GHz frequency bands and 2.4 GHz. The optimize modulation provide the good sensitivity in Sub-GHz and BLE 5.0 solution. The long range mode in Sub-GHz can transfer data over 2KM.

Key features

  • 1. Sub-GHz bands : Up to request
  • 2. Bluetooth® 5 TX power: +10 dBm, RX sensitivity: -96 dBm
  • 3. Sub-GHz TX power: +20dBm, RX sensitivity: -120 dBm@50Kbps
  • 4. Compliant with 802.15.4g
  • 5. Sub-GHz and 2.4 GHz with separate antenna
  • 6. FSK,2FSK, 2GFSK, and GFSK modulations
  • 7. Sub-GHz TX Current consumption 433MHz: 85mA @ +20 dBm
  • 8. Low power: Ideep sleep mode = 0.8 uA and Isleep mode = 1.2 uA
  • 9. Programmable data rate from 50 Kbps to 2 Mbps
  • 10. RSSI read-out
  • 11. Sub-GHz long range: ~2 KM
  • 12. Internal 32.768 KHz Oscillator
  • 13. Compliant with Bluetooth® 5 LE Specification
  • 14. Security : CRC, AES128/196/256
  • 15. Operating Temperature: -40C~85C

Block Diagram

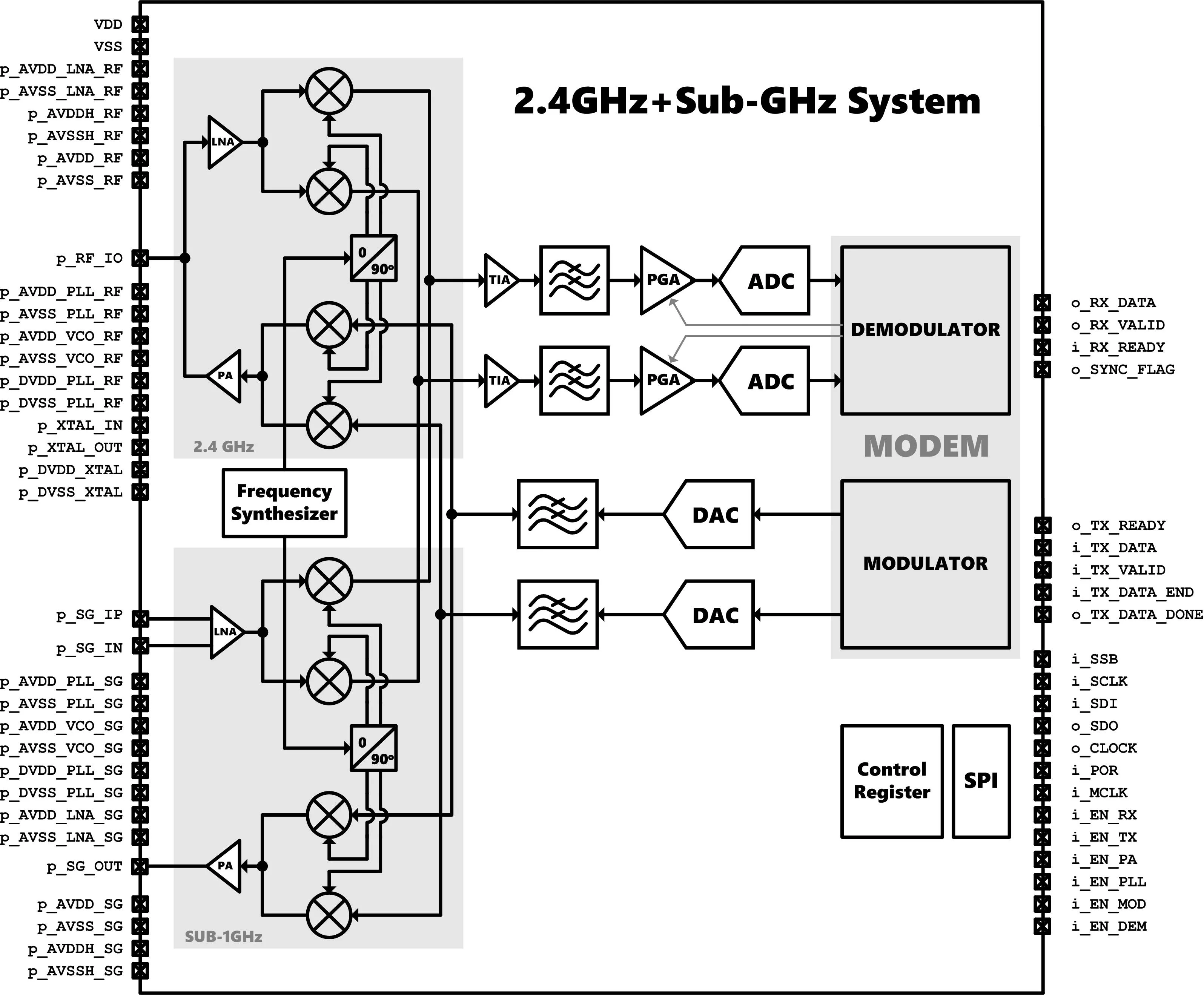

BLE5SUBGT40ULP block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 40nm ULP eFlash Silicon Proven
