065TSMC_PA_01 is a broadband power amplifier, which consist of three cascades.
Overview
065TSMC_PA_01 is a broadband power amplifier, which consist of three cascades. With a view to use QAM, QPSK, OFDM modulations schemes amplifier with increased linearity operating in A class is used. First cascade operates as preamplifier of incoming signal, also due to scheme of connection with common gate it provides matching of input impedance in wide range of frequencies. Broadband amplification is reached due to tuning of resonance frequencies of two cascades to different values and also by including additional resistors into load networks, this provides necessary amplification levels on low frequencies.
Key features
- TSMC CMOS 65 nm
- A class PA
- Frequency range (75 MHz – 3 GHz)
- High linearity
- Portable to other technologies (upon request)
Block Diagram

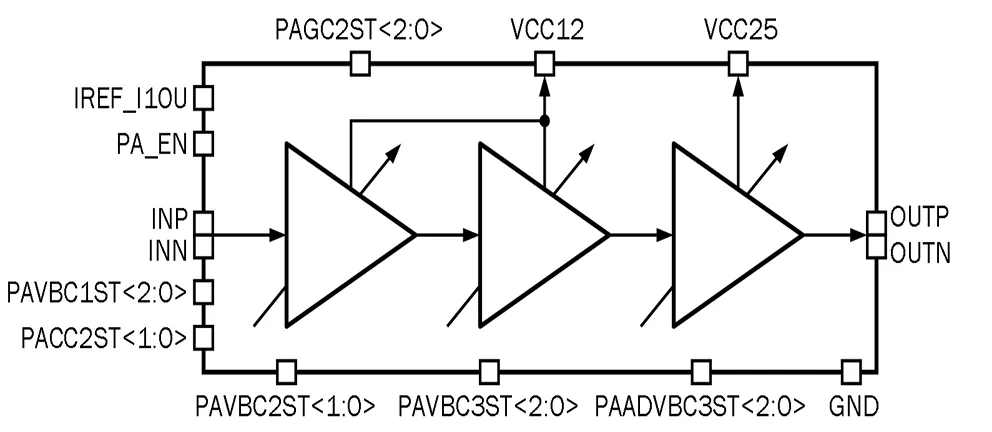

065TSMC_PA_01 block diagram
Applications
- Portable transmitters
- Portable transceivers
- Mobile communication devices
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 65nm | GP | Silicon Proven |
Specifications
Identity
Part Number
065TSMC_PA_01
