39GHz High-Efficiency CMOS Power Amplifier for 5G mmWave Applications
The FCM3901 is a high-efficiency 39GHz power amplifier developed for 5G mmWave applications.
Overview
The FCM3901 is a high-efficiency 39GHz power amplifier developed for 5G mmWave applications.
Implemented in a CMOS process and powered by Falcomm’s patented Dual-Drive™ architecture, the FCM3901 achieves excellent power-added efficiency, gain, and linearity in a compact, cost-effective Si footprint.
Optimized for phased arrays, beamforming ICs, and broadband RF front ends, the FCM3901 is available as silicon-proven IP, enabling rapid integration and fast time-to-market for next-generation 39GHz mmWave platforms.
Key features
- 2-stage PAEmax = 45%
- PA-stage DEmax = 54%
- Psat = 18.3dBm
- Gain = 19dB
- Efficiency maintained at lower supply voltages for added reliability
- High data rate modulation speeds

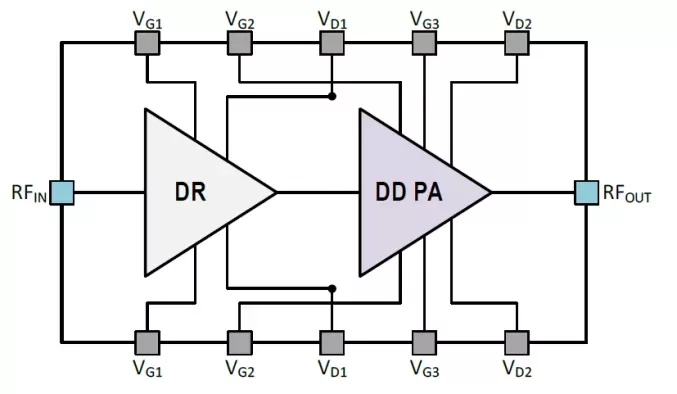

Block Diagram
FCM3901 block diagram
Benefits
- Best in class efficiency
- Plug and play
- Frequency and process agnostic
- 0.5x silicon area reduction
- 6dB lower loss matching network
- Silicon proven design flow that accurately models within 2% of measurements
Applications
- IoT devices
- Satellite Communication
- Mobile User Equipment
- Cellular Base Stations
- Automotive Radar
- Fixed Wireless Access
Specifications
Identity
Part Number
FCM3901
Vendor
Falcomm
Provider
Falcomm
HQ:
USA
Falcomm is a fabless semiconductor company that reinvented the power amplifier with our patented ultra-efficient Dual-Drive™ technology. Our silicon-proven Dual-Drive™ power amplifier demonstrates world record energy efficiency and enhanced linearity that supports Gb/s modulated signals with high spectral efficiency for the wireless communication market using half the silicon area of commercially available Doherty amplifiers.
