Power Amplifier 76-81GHz
The WEA7681P22G is an integrated power amplifier designed for Microwave Backhaul,5G Communications and mm-Wave Wireless Phase Arr…
Overview
The WEA7681P22G is an integrated power amplifier designed for Microwave Backhaul,5G Communications and mm-Wave Wireless Phase Arrays receiver applications. The WEA7681P22G operates between 76 and 81 GHz and is powered from 1.5V and 3V supplies. The WEA7681P22G provides saturated output power of 16 dBm. The WEA7681P22G is fabricated on GlobalFoundries 22FDX process occupying a total silicon area of 1.3 mm x 1.5mm.
Key features
- Integrated Matching Network
- Integrated Inductors
- 5 V and 3.0V Supply Voltage
- 14 dB Gain
- Frequency range 76GHz-81GHz
- TX PAE = 13% at 16 dBm Output Power
- 14 dBm TX Output 1dB Compression Point
- Area: 1.3mm x 1.5mm
- Programmable BIAS
Block Diagram

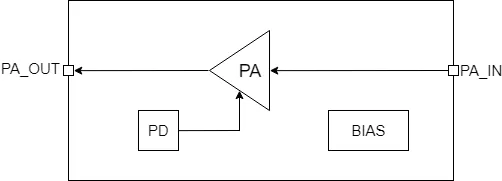

WEA7681P22G block diagram
Applications
- 5G,P2P
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | Silicon Proven |
Specifications
Identity
Part Number
WEA7681P22G
Vendor
Weasic Microelectronics
Provider
Weasic Microelectronics
HQ:
Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
