Low-Noise Amplifier 76-81 GHz
The WEA7681L22G is an integrated low-noise amplifier with Gain Control block designed for Automotive Radar and mm-Wave Wireless P…
Overview
The WEA7681L22G is an integrated low-noise amplifier with Gain Control block designed for Automotive Radar and mm-Wave Wireless Phase Arrays receiver applications. The WEA7681L22G operates between 76 and 81GHz with a signal gain of 16 dB and noise figure of 8 dB from 1.5V supply. The WEA7681L22G is fabricated on GlobalFoundries 22FDX process occupying a total silicon area of 800um x 125um.
Key features
- Small signal gain: 15 dB
- Noise figure: 8 dB
- IDC:30 mA
- -3 dBm RX Input Referred IP3@max gain
- -13 dBm RX IP1dB
- Single DC supply: 1.5V
- 16 steps gain control,1dB step
- Area:800x125um

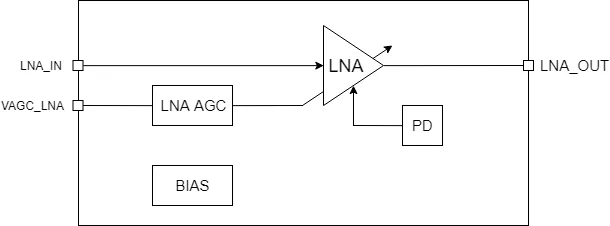

Block Diagram
WEA7681L22G block diagram
Applications
- Radar, mm-Wave Wireless Phase Arrays
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | Silicon Proven |
Specifications
Identity
Part Number
WEA7681L22G
Vendor
Weasic Microelectronics
Provider
Weasic Microelectronics
HQ:
Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
