Vendor: Sofics Category: GPIO

3.3V Capable GPIO on TSMC 28nm RF HPC+

The 3.3V capable GPIO is an IP macro for on-chip integration.

Contact Provider Request Datasheet
TSMC 28nm View all specifications

Overview

The 3.3V capable GPIO is an IP macro for on-chip integration. It is a 3.3V general purpose I/O built with a stack of 1.8V thick oxide MOS devices. It is controlled by 0.9V (core) signals.

Supported features include core isolation, output enable and pull enable. Extra features such as input enable/disable, programmable drive strength and pull select, can be supported upon request.

By default, a 2kV HBM ESD protection is included. This is however easily scaled to any desired level. This specific IP macro is designed in TSMC 28nm RF HPC+ MMWave, and can be ported to other technologies upon request using inhouse design tool flow.

Key features

  • Overvoltage tolerant design
  • Deep N-Well
  • DFM rules for manufacturing
  • Core domain isolation
  • Compatible with TSMC I/O ring
  • Horizontal orientation
  • Temp range -40°C to 125°C TJ
  • 50kΩ pullup/pulldown
  • Integrated 2kV HBM ESD
  • 0.9V digital interface at the core side
  • Bias generation circuit can be shared over multiple I/O instances

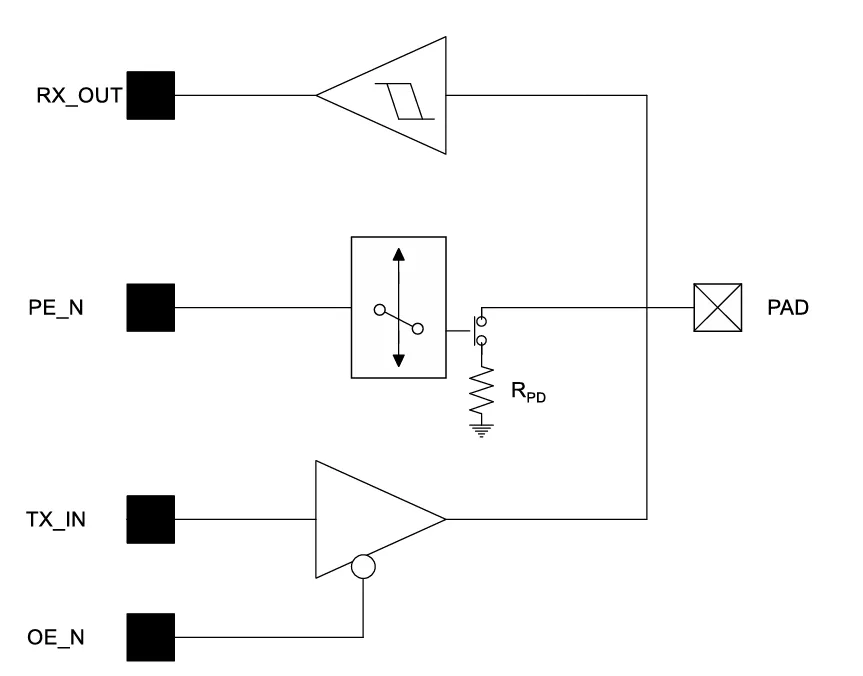

Block Diagram
