Vendor: Sofics Category: GPIO

1.2V Thin Oxide GPIO on TSMC 28nm RF HPC+

The 1.2V Thin Gate GPIO is an IP macro for on-chip integration.

Contact Provider Request Datasheet
TSMC 28nm View all specifications

Overview

The 1.2V Thin Gate GPIO is an IP macro for on-chip integration. It is a 1.2V general purpose I/O that does not rely on thick-gate devices. Only thin-gate, 0.9V capable core MOS devices are used in the design.

Supported features include core isolation, programmable slew rate compensation, programmable drive strength, input/output enable, pull select and pull enable. Extra features such as programmable hysteresis can be supported upon request.

The 1.2V Thin Gate GPIO targets radiation hard applications or other applications prohibiting the use of thick gate I/O devices. By default, a 2kV HBM ESD protection is included. This is however easily scaled to any desired level. This specific IP macro is designed in TSMC 28nm RF HPC+, and can be ported to other technologies upon request using Sofics inhouse design tool flow.

Physical implementation

  • TSMC 28nm RF HPC+ 1P9M
  • No thick gate devices, MIM cap or STI required
  • Pad size 70um x 70um

Key features

  • Overvoltage tolerant design
  • Core domain isolation
  • Compatible with TSMC I/O ring
  • Vertical and horizontal orientation
  • Temp range -40°C to 125°C TJ
  • 100kΩ pullup/pulldown
  • Integrated 2kV HBM ESD
  • Programmable slope control
  • 0.9V digital interface
  • Bias generation circuit can be shared over multiple I/O instances

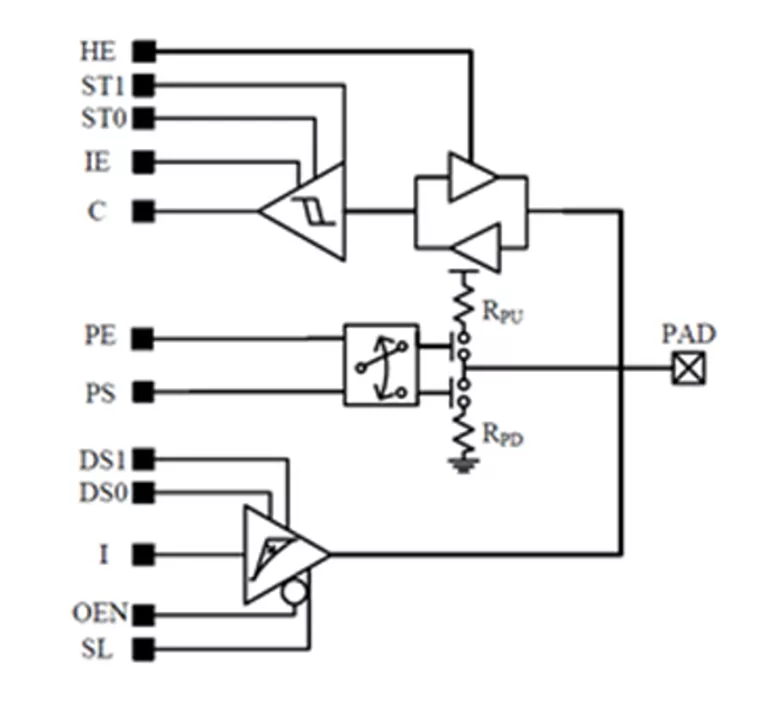

Block Diagram

1.2V Capable GPIO on TSMC 28nm RF HPC+ block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 28nm 28nm 280 nm —

Specifications

Identity

Part Number
1.2V Capable GPIO on TSMC 28nm RF HPC+
Vendor
Sofics

Provider

Sofics
HQ: Belgium
