Vendor: Logic Design Solutions Category: NVMe Controller

Xilinx UltraScale Plus NVME Hhost IP

The LDS NVME HOST ZUP IP is one of the most flexible NVME HOST IP in the market.

Contact Provider Request Datasheet

Overview

The LDS NVME HOST ZUP IP is one of the most flexible NVME HOST IP in the market.

It has been done for beginners and expert in NVMe to drive NVMe PCIe SSD.

Key features

  • PCIe RP and EP register configuration is done automatically.
  • NVMe register configuration is done automatically.
  • Able to manage 8 Name Spaces.
  • Able to manage until 16 IO Queue to fit specific user requirement. Each IO Queue is independent.
  • Able to manage 512Bytes or 4096Bytes sector size.
  • Able to run nearly all Admin command in parallel of IO Queue.
  • Many IO command already pre-defined to ease use of the IP.
  • Configurable IO Queue buffer size to fit user memory requirement in case of small density FPGA: 32KB, 64KB, 128KB or 256KB.
  • Able to read all PCIe RP and EP registers.
  • Easy connection to embedded Root Port PCIe IP through AXI bus.

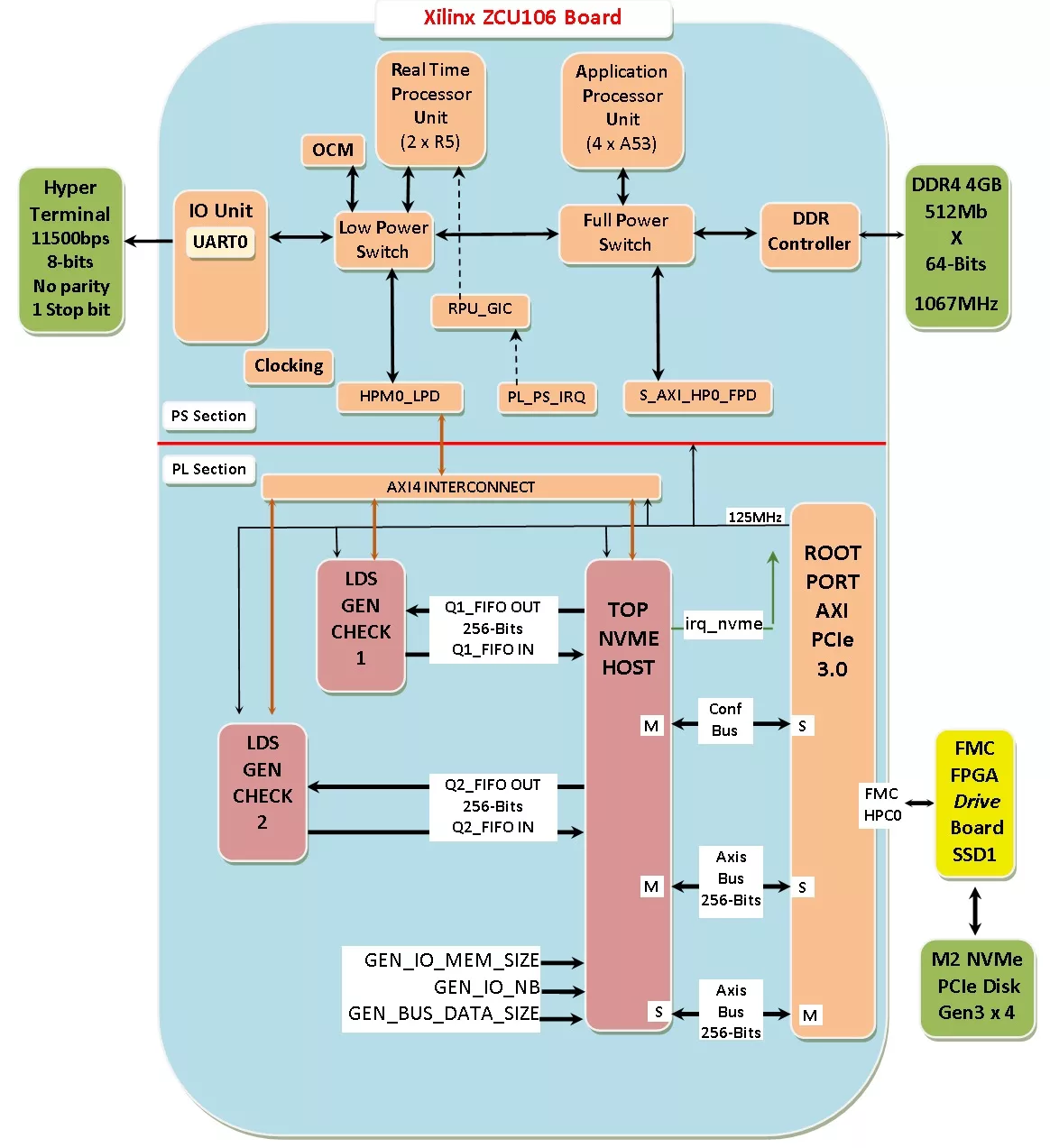

Block Diagram

NVME-HOST-RECORDER-ZUP block diagram

Benefits

  • The LDS-NVME-HOST-ZUP IP is one of the most flexible IP in the market at an excellent price.

Applications

  • Embedded recorder system.

What’s Included?

  • Source Code.
  • Encrypted Source Code.

Specifications

Identity

Part Number
NVME-HOST-RECORDER-ZUP
Vendor
Logic Design Solutions
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Logic Design Solutions
HQ: FRANCE
Logic Design Solutions is an FPGA Design and Intellectual Property (IP) company that provides Design Services, IP (cores) and DO254 methodology to FPGA customers. We engage ourself to be your high standard quality solutions provider for FPGA cores and Design Services.
Contact Logic Design Solutions
