Vendor: eInfochips Category: NVMe Controller

NVMe Verification IP

The NVMe Verification IP (VIP) and Post-Silicon Validation Suite are based on the latest protocol standards (NVMe 1.2) from www.n…

Contact Provider Request Datasheet

Overview

The NVMe Verification IP (VIP) and Post-Silicon Validation Suite are based on the latest protocol standards (NVMe 1.2) from www.nvme.org. These are available from elnfochips for licensing with support and related services.

NVMe Services

elnfochips offers industry leading expertise on NVMe for flash based SSD storage products. This includes design, verification and system validation for ASIC and FPGA. Customers can accel erate product design schedule for RnD teams while reducing product and performance risks with proven solutions and services.

NVMe Validation Suite

elnfochips NVMe Post-Silicon Validation Suite enables test scenarios that are defined by UNH-IOL (University of New Hampshire - Interoperability Lab) for performance and interoperability. It also covers other test scenarios for greater confidence on the product design and performance. It supports Windows and Linux OS.

NVMe Verification IP

The NVMe VIP is interoperable with other third party VIPs like PCle or SATA for a modular and comprehensive verification environment. This VIP is fully compliant to UVM, OVM, VMM and SystemVerilog.

Key features

NVMe VIP:

  • NVMe 1.2 Compliance
  • User configurable Admin/IO queue size and configuration Admin commands for IO queues and NVM read/write, reset, abort, identify, get and set features
  • Supports PRP and PRP List
  • All interrupt reporting: pin-based, single message MSI, multiple messages MSI, MSI-X
  • Exhaustive checkers
  • Exhaustive functional coverage
  • Hook-ups for score boarding and additional processing
  • Bandwidth calculator per direction per component
  • Works with other PCle VIP and custom BFM/IF

NVMe Validation Test Suite

  • System level test scenarios not covered by UNH-IOL
  • Create I/O Submission queue without creating associated I/O
  • Completion queue
  • Same Command ID for two commands in a Submission queue
  • Invalid SGL Segment location
  • Common OS abstraction layer test suite for Linux and Windows OS
  • Enhanced tNVMe as per test scenarios requirements
  • QEMU based NVMe software mode

Block Diagram

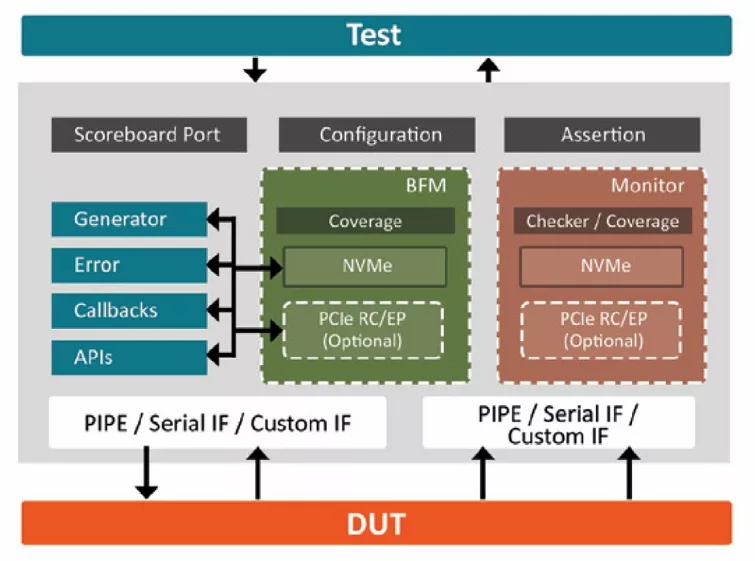

NVMe Verification IP block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
NVMe Verification IP
Vendor
eInfochips

Provider

eInfochips
HQ: USA
eInfochips, an Arrow Electronics company, is a leading provider of digital transformation and product engineering services. eInfochips accelerates time to market for its customers with its expertise in IoT, AI/ML, security, sensors, silicon, wireless, cloud, and power. eInfochips has been recognized as a leader in Engineering R&D services by many top analysts and industry bodies, including Gartner, Zinnov, ISG, IDC, NASSCOM and others.
Contact eInfochips
