Vendor:
Advinno Technologies Pte Ltd
Category:
Wi-Fi
WiFi 6 transceiver IP - 1x1 concurrent dual-band
Key features
- Dual-band transceiver IP supporting IEEE802.11a/b/g/n/ac/ax
- Full concurrent dual band operation
- Integrated linear Power Amplifiers
- Reduced bias current with reduced output power, allowing optimized bias conditions for different use cases
- Integrated receive/transmit switches
- Integrated analog channel filters with switchable bandwidth
- Easy-to-use calibration routines and simple interface to digital baseband
- Fractional-N synthesizers with fine tuning resolution and integrated loop filters
- Clock PLL generating clocks for ADCs/DACs and digital baseband
- Integrated crystal oscillator for RF reference clock
- General-purpose ADC for measurement and calibration

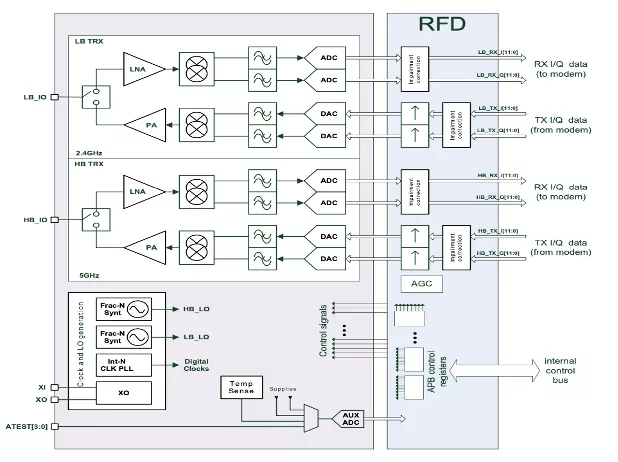

Block Diagram
SWW6DBARF1040T22ABAL block diagram
Benefits
- High technology RF design with advance process
- Support DBAC/ DBDC Design
- Smallest RF area , ultra-low power consumption and high performance RF indicators
- Highly integration PA/LAN and SX
- Support external FEM and DPD algorithm
- Support AD die requirements
- Full compliance with RF certification has context menu
Applications
- Wearable
- Consumer IOT
- Automotive
- Access point
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 22nm | ULL | In Production |
Specifications
Identity
Part Number
SWW6DBARF1040T22ABAL
Vendor
Advinno Technologies Pte Ltd
Provider
Advinno Technologies Pte Ltd
HQ:
Singapore
Advinno Technologies is an independent Electronics Design House Incorporated in Singapore in 2002. The business focuses on design, engineering and manufacturing of semiconductors, electronics systems and turnkey products. The team's design experience spans ASIC, FPGA, Analog mixed signal, AI , Silicon Photonics, MEMS, RF, PCB, Embedded system, System Integration
