Vendor: M31 Technology Corp. Category: Single-Protocol PHY

USB3.0 build-in clock PHY, UMC 40LP, type-C

In USB product series, M31 not only provides customers with a standard USB PHY solution, but also offers a unique BCK function.

Contact Provider Request Datasheet
UMC 40nm LP View all specifications

Overview

In USB product series, M31 not only provides customers with a standard USB PHY solution, but also offers a unique BCK function. M31’s patented BCK (Built-in-Clock, a.k.a. Crystal-less) technology is an innovative way to save BOM(Bill of Materials) cost by reducing an external crystal for mobile USB devices. In general, this solution has been popularly adopted by those USB devices in applications like flash drive, wireless transmitter, sound card, webcam. During USB data transfer, the IP performs a background calibration to ensure frequency accuracy. The USB IP with BCK complies with the USB-IF specification and has the same electrical performance as the standard USB IP.

Key features

  • Smallest USB 3.2 Gen1x1 BCK PHY IP worldwide (e.g. IP size @40nm <0.36mm²)
  • Fully compliant with Universal Serial Bus USB 3.2 Gen1x1, 2.0, and 1.1 electrical specifications
  • Supports clock outputs from the internal BCK module
  • Real-time calibrations to ensure frequency accuracy
  • Data UI (unit interval) is well-controlled within ±500ppm during data transfer
  • Concise and explicit design structure to ease the IP integration

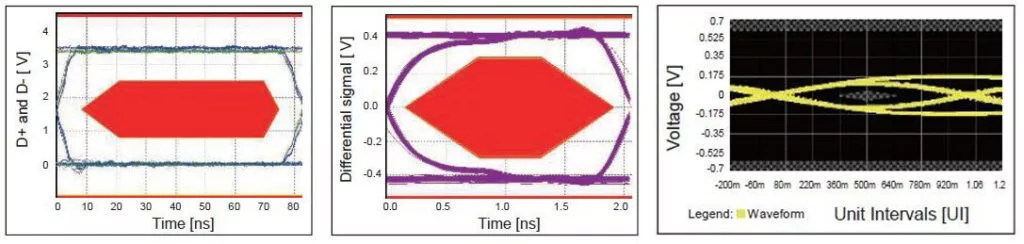

Block Diagram

USB3.0 build-in clock PHY, UMC 40LP, type-C block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
UMC 40nm LP —

Specifications

Identity

Part Number
USB3.0 build-in clock PHY, UMC 40LP, type-C
Vendor
M31 Technology Corp.

Provider

M31 Technology Corp.
HQ: Taiwan
About M31 Technology M31 Technology Corporation (6643-TW) is a professional silicon intellectual property (IP) provider. The company was founded in July 2011 with its headquarters in Hsinchu, Taiwan. M31’s strength is in R&D and customer service. With substantial experiences in IP development, IC design and electronic design automation fields, M31 focuses on providing high-speed interface IPs, memory compilers and standard cell library solutions. M31 has close collaboration with world-class semiconductor companies. It has been aggressively investing in developing and validating different silicon IPs. Most IPs are targeted at advanced process technologies in various foundries. M31 provides customers with differentiated IP solutions. These solutions help customers grasp market opportunities in short design cycles, low manufacturing costs, and high product competitiveness. M31’s vision is to be the most trustworthy IP company in the semiconductor industry. For more information, please visit https://www.m31tech.com
