Vendor: Chipus Microelectronics Category: Power Management Unit

Ultra Low Power PMU - Ultra Low Voltage (Vin > 1.2V), Ultra Low Power (6µW) - LFoundry 0.15 um

This macro-cell is an ultra low consumption Power Management Unit (PMU) core designed for LFoundry 0.15µm LF150 CMOS technology S…

Contact Provider Request Datasheet
LFoundry 150nm Silicon Proven View all specifications

Overview

This macro-cell is an ultra low consumption Power Management Unit (PMU) core designed for LFoundry 0.15µm LF150 CMOS technology STD (Standard) and LP (Low Power) process.

The circuit has 2 LDO voltage regulators, internal voltage and current references, built-in power-on-reset and oscillator, and an 8-bit low power and low frequency ADC for general purpose voltage monitoring. Internal blocks are programmable via 3-pin serial digital interface providing high IP flexibility.

The core is easily retargeted to any other CMOS technology with R-poly devices.

Key features

  • Ultra low power PMU w/ 2 LDO's
  • Flexible supply voltage 1.2­-3.6V
  • Low current (w/ 1 LDO on): 3.8µA
  • Internal 750mV/17.5nA references
  • Built-in oscillator and POR
  • ADC for supply voltage monitoring
  • Indicative area: 0.32mm2

Block Diagram

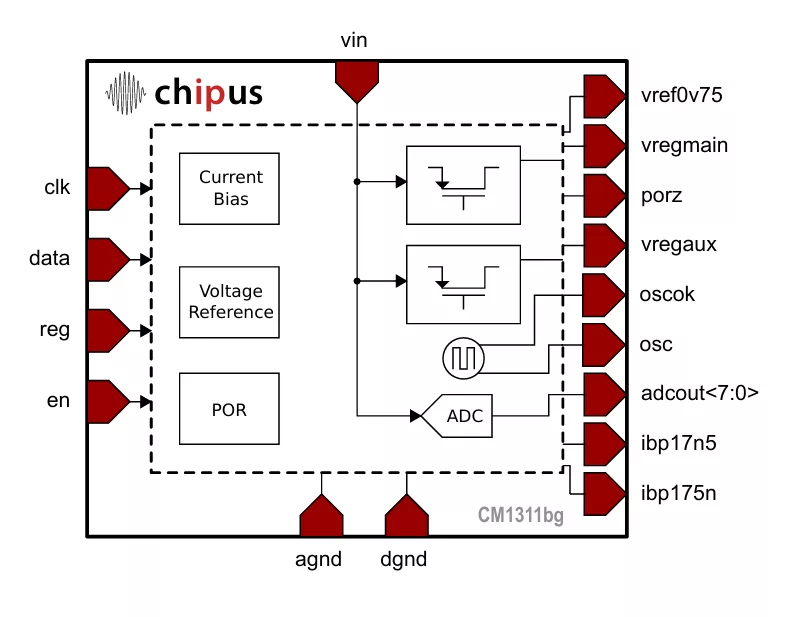

CM1311bg block diagram

Applications

  • Battery powered equipment
  • Passive/active RFID tag ICs
  • Energy Haversting ICs
  • Hearing aids
  • Silicon Proven

What’s Included?

  • Datasheet/Integration Guide
  • HDL Model
  • Flat GDSII database/LVS netlist
  • Customer Support

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
LFoundry 150nm 150nm 1500 nm Silicon Proven

Specifications

Identity

Part Number
CM1311bg
Vendor
Chipus Microelectronics

Provider

Chipus Microelectronics
HQ: Brazil
