Vendor: NTLab Category: Power Management Unit

Power Management Unit (1.1 - 1.4V output voltage, load current 5 mA)

055TSMC_PMU_01 is designed to form stabilized voltage with overcurrent indication (bit Status).

Contact Provider Request Datasheet
TSMC 55nm GP Silicon Proven View all specifications

Overview

055TSMC_PMU_01 is designed to form stabilized voltage with overcurrent indication (bit Status). The block has configurable output voltage (1.1/1.2/1.3/1.4V) with parameters specified for 5 mA output current. The Status bit is set to "1", when the load current is greater than 15 mA.

Key features

  • TSMC CMOS 55 nm
  • Output voltage: 1.1 ... 1.4 V
  • Low current consumption
  • Overcurrent indication
  • Low voltage drop

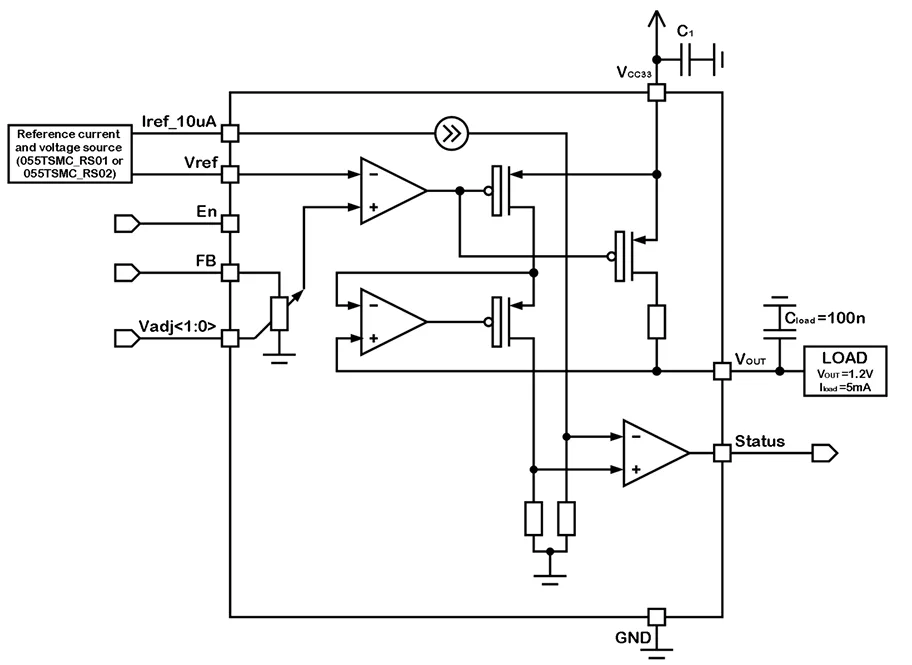

Block Diagram

055TSMC_PMU_01 block diagram

Applications

  • Supply voltage sensitive circuits
  • Power solutions
  • Clocking systems

What’s Included?

  • Schematic or NetList
  • Abstract view (.lef and .lib files)
  • Layout (optional)
  • Verilog behavior model
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 55nm GP Silicon Proven

Specifications

Identity

Part Number
055TSMC_PMU_01
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
