MIPI UniPro G4 Controller

The Unified Protocol (UniPro) specification defines a layered protocol for interconnecting devices and components within mobile d…

Contact Provider Request Datasheet

Overview

The Unified Protocol (UniPro) specification defines a layered protocol for interconnecting devices and components within mobile device systems. It is applicable to a wide range of component types including application processors, co-processors, and modems, as well as different types of data traffic including control messages, bulk data transfer and packetized streaming. Implementing the UniPro specification reduces time-to-market and design costs by simplifying the interconnection of peripherals. In addition, the re-useable, extensible nature of the specification simplifies new feature implementation.

The MIPI® UniPro Controller IP, compliant with the latest MIPI UniPro v2.0 specification, provides the capability to control the UniPro link over a MIPI M-PHY link. Due to its generic nature, the MIPI UniPro Controller IP is capable of transporting any kind of data between applications like camera, display, and memory devices on the same physical link.

When the MIPI UniPro Controller IP is combined with the Universal Flash Storage (UFS) Host Controller IP and the MIPI® M-PHY IP, the vendor provides a single vendor UFS IP solution that designers can easily integrate into application processors with less risk, while speeding time-to-market of advanced SoCs and device integrated circuits (ICs).

Key features

  • Compliant with the MIPI UniPro v1.8 specification
  • Supports all host and device configurations for JEDEC UFS and UniPort M
  • Supports HS-Gear4 Synopsys M-PHY IP v4.1 and access to attributes
  • HS-Gear4 adaptation and advanced granularity capability
  • Skip symbol insertion, scrambler function, MK2 extension
  • Scalable maximum bandwidth (up to 4 lanes in each direction)
  • Configurable number of C Ports and DDB settings

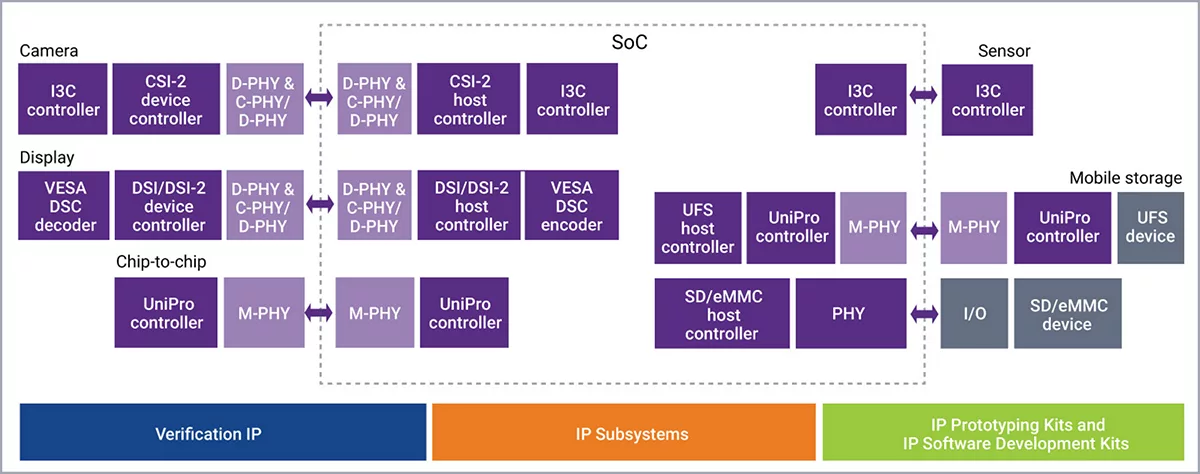

Block Diagram

dwc_mipi_unipro18 block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
dwc_mipi_unipro18
Vendor
Synopsys, Inc.
Type
Silicon IP

Provider

Synopsys, Inc.
HQ: USA
Synopsys is a leading provider of high-quality, silicon-proven semiconductor IP solutions for SoC designs. The broad Synopsys IP portfolio includes logic libraries, embedded memories, analog IP, wired and wireless interface IP, security IP, embedded processors and subsystems. To accelerate IP integration, software development, and silicon bring-up, Synopsys’ IP Accelerated initiative provides architecture design expertise, pre-verified and customizable IP subsystems, hardening, and signal/power integrity analysis. Synopsys' extensive investment in IP quality, comprehensive technical support and robust IP development methodology enables designers to reduce integration risk and accelerate time-to-market.
Contact Synopsys, Inc.

Learn more about UniPro IP core

Frequently asked questions about UniPro IP cores

What is MIPI UniPro G4 Controller?

MIPI UniPro G4 Controller is a UniPro IP core from Synopsys, Inc. listed on Semi IP Hub.

How should engineers evaluate this UniPro?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this UniPro IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
