Mipi Unipro Verification IP

The MIPI UniPro Verification IP provides an effective & efficient way to verify the components interfacing with MIPI UniPro interface of an IP or SoC. The MIPI UniPro VIP is fully compliant with MIPI Alliance specification for UniPro Version 2.0. The VIP is light weight VIP with easy plug-and-play interface so that there is no hit on the design cycle time.

• MIPI UniPro VIP is fully compliant with MIPI UniPro Specification 2.0 and MIPI M-PHY Specification 5.0
• Fully supports Transport Layer, Network Layer, Data Link Layer, PHY Adapter Layer and Device Management Entity
• Supports maximum of four Lanes in each direction
• Supports different HS-GEAR or PWM-GEAR in both directions.
• Supports RMMI Interface for the M-PHY at all Interface widths
• Supports Reset, Hibernate and Boot Procedures
• Supports UniPro Cold, UniPro Warm and EndPoint Reset
• Supports Link Startup, Configuration and (Re-)Initialization sequences
• Supports provision of UniPro power management operating modes
• Supports Lane distribution and merging in multi-Lane ports
• Supports PACP communication and Skip Symbol Insertion
• Supports Scrambling for EMI Mitigation
• Support for error processing during Link startup
• Support change in power mode process with ADAPT process
• Support for up to two Traffic Classes: TC0 and TC1
• Supports Data Link Layer Initialization and Flow Control along with Data and Control Frames
• Supports optional Frame pre-emption feature and capability to receive pre-empted Frames
• Supports packet format and segment format recognition
• Supports Addressing, Connections, Message Segmentation and Reassembly
• Supports CPort Address Translation and CPort Arbitration
• Supports Transport Layer End-to-End Flow Control and Test Features
• Performs protocol checks at all layers of the UniPro Stack
• Supports dynamically configurable mode
• Built in Coverage analysis
• Provides a comprehensive user API (callbacks) in all Devices
• Graphical analyser to show transactions for easy debugging

• Available in native SystemVerilog(UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure
• highest level of quality Availability of Conformance and Regression Test Suites
• 24x5 customer support
• Unique and customizable licensing models Exhaustive set of assertions and cover points with connectivity example for all the components
• Consistency of interface, installation, operation and documentation across all our VIPs

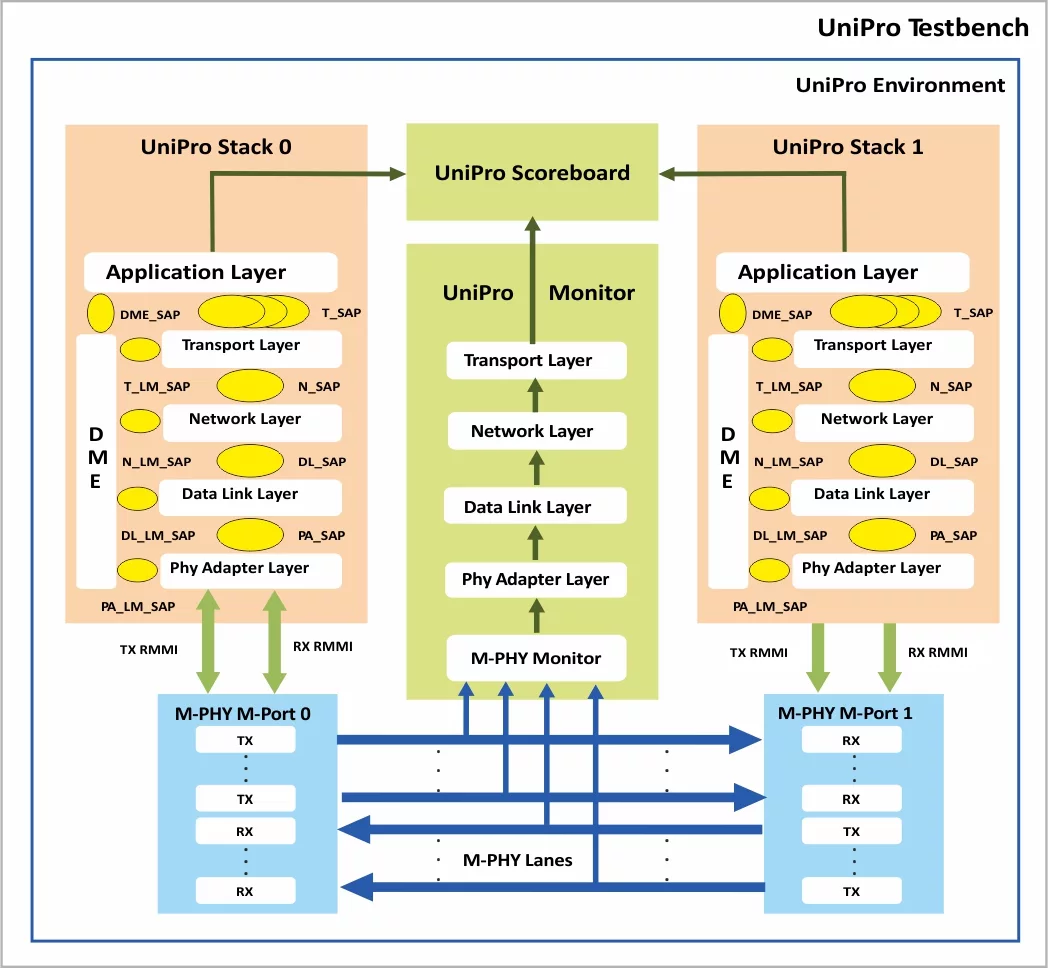

• MIPI UniPro Stacks
  • PHY Adapter Layer Agent
  • Data Link Layer Agent
  • Network Layer Agent
  • Transport Layer Agent
  • Device Management Entity Agent
• MIPI UniPro layered Monitor and Scoreboard
• Test Environment & Test Suite :
  • Basic Protocol Tests
  • Directed & Random Tests
  • Assertions & Cover Point Tests
  • Error Injection Tests
• Protocol Conformance Tests
• Integration Guide, User Manual and Release Notes
