MIPI M-PHY v4.1 IP, Silicon Proven in TSMC 55 ULP
The most recent MIPI Feature Storage IP Solution SerDes PHY Product Brief Alliance M-PHY v4.1 Specification, UniPro v1.8 Specific…
Overview
The most recent MIPI Feature Storage IP Solution SerDes PHY Product Brief Alliance M-PHY v4.1 Specification, UniPro v1.8 Specification, and Universal Flash Storage (UFS) v3.0 Specification are all compatible with the MIPI M-PHY Gear 4 IP. a high-bandwidth serial interface technology developed especially for mobile applications in order to reduce the number of pins and improve energy efficiency. Up to 11.6Gbps of HS Gear4 data speeds are supported. Both the UniPro controller and UFS Controller are supported by the RMMI interface-compatible MIPI M-PHY Gear 4 IP. The MIPI M-PHY offers dependable embedded system debugging and receiver ocular data monitoring at a reasonable cost through Build-In-Self-Test (BIST).
Key features
- Compatible with PCIe base Specification
- Full compatible with PIPE3.0 interface specification
- Independent channel power down control
- Implemented Receiver equalization Adaptive-CTLE to compensate insertion loss
- Support 16-bit/32bit parallel interface
- Support for PCIe gen1(2.5Gbps) and PCIe gen2(5.0Gbps)
- Support flexible reference clock frequency
- Support 100MHz differential reference clock input or output (with SSC optionally) in PCIe Mode
- Support Spread-Spectrum clock (SSC) generation and receiving from -5000ppm to 0ppm
- Support programmable transmit amplitude and Deemphasis
- Support TX detect RX function in PCIe Mode
- Support Beacon signal generation and detection in
- Production test support is optimized through high coverage at-speed BIST and loopback
- Integrated on-die termination resistors and IO Pads/Bumps
- Embedded Primary & Secondary ESD Protection
- ESD: HBM/MM/CDM/Latch Up 2000V/200V/500V/100mA
- Silicon Proven in TSMC 55ULP.

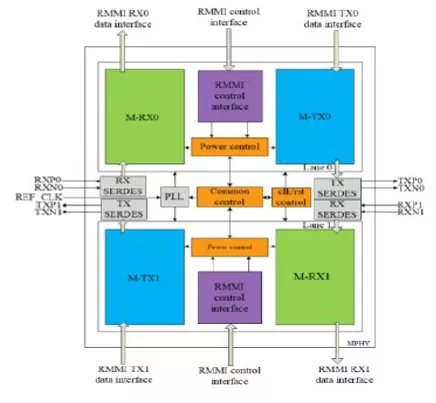

Block Diagram
MIPI M-PHY v4.1 IP in 55ULP block diagram
What’s Included?
- Application Note / User Manual
- Behaviour model, and protected RTL codes
- Protected Post layout netlist and Standard Delay Format (SDF)
- Library (LIB)
- Frame view (LEF)
- Metal GDS (GDSII)
- Test patterns and Test Documentation
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 55nm | ULP | In Production |
Specifications
Identity
Part Number
MIPI M-PHY v4.1 IP in 55ULP
Vendor
T2M GmbH
Provider
T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets.
T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules.
With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
