MIPI DPHY-TX - GlobalFoundries 22FDX process

This is a DPHY Master IP compliant to the “MIPI Alliance Spec for D-PHY v1.2”, which consists of 1-Clock and 4-Data lanes.

GlobalFoundries 22nm FDX Silicon Proven View all specifications

Overview

This is a DPHY Master IP compliant to the “MIPI Alliance Spec for D-PHY v1.2”, which consists of 1-Clock and 4-Data lanes. Each data lane can support HS and LP Escape modes (LPDT, Trigger, ULPS) in forward direction. The supported data rate per lane is 2.5Gbps in High-Speed mode and 10Mbps in Low-Power escape mode. Only data lane0 is bi-directional and can additionally support Turnaround and LP Escape mode (LPDT and Trigger) in reverse direction. The target applications are CSI-2 device and DSI host physical layers.

Key features

  • Data rate per lane: High-Speed mode 80M~2.5G bps, Low-Power mode 10Mbps
  • Silicon proven in GlobalFoundries 22FDX process
  • Compliant to the MIPI D-PHY spec v1.2
  • Support HiSPi-SLVS TX compatible mode
  • Lane type:1 clock + 4 data (D0 is bi-dir)
  • On-chip differential 100Ω terminations with calibration
  • Support for DPHY Ultra Low Power State
  • Built-in self test function
  • Supply voltage: 1.8V±10%, 0.8V±10%
  • Junction temperature range: -40°C~25°C~125°C
  • Support wire-bond and flip-chip package type

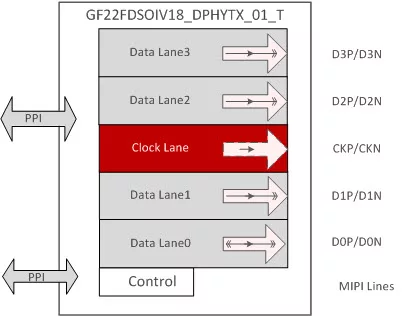

Block Diagram
