Vendor: T2M GmbH Category: MIPI PHY

MIPI C/D-PHY Combo Rx IP, Silicon Proven in TSMC 40 LP

Many production nodes use the C-PHY/D-PHY Combo because it uses the fewest resources and energy.

Contact Provider Request Datasheet
TSMC 40nm LP In Production View all specifications

Overview

Many production nodes use the C-PHY/D-PHY Combo because it uses the fewest resources and energy. Users can configure the Combo PHY in D-PHY or C-PHY mode to support a range of applications. Additionally, it complies with the PPI interface, making it easy to connect to either the CIS-2 or DSI controller. The most competitive foundry methods in terms of PPA (Performance, Power, and Area) and standard compliances are D-PHY and C/D-PHY Combo. A wide range of functions are available with the ISO 26262 ASIL-B approved MIPI D-PHY for automotive multimedia applications.

Key features

  • Compliant with MIPI D-PHY spec up to v2.5 and C-PHY spec up to v2.0
  • Support both MIPI DSI and CSI-2 protocols
  • Support HS data rate up to 6Gbps ( 6Gsps ) per lane (per trio)
  • Support LS data rate of 10Mbps and Ultra-low power mode
  • Support fast lane turnaround (FTA) and alternate low-power (ALP) mode
  • Support D-PHY mode with 1 clock lane & up to 4 data lanes
  • Support C-PHY mode up to 3 trios for TX and 4 trios for RX
  • Support TX-EQ and Rx-EQ function to compensate loss of a long channel
  • Support additional D-PHY RX mode with 2 sets of (1 clock lane and up to 2 data lanes)
  • Support additional C-PHY RX mode with 2 sets of 2 trios
  • Provide D-PHY clock and data lane swap function
  • Provide C-PHY trios swap function
  • Provide a stand-alone at-speed multi-lanes (trios) parallel BIST module for mass production tests
  • Silicon proven in TSMC 40LP.

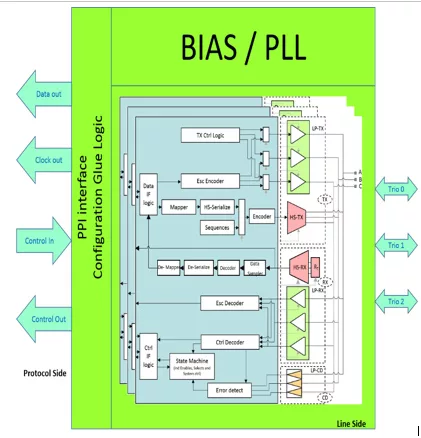

Block Diagram

MIPI C/D-PHY Combo Rx IP in 40LP block diagram

What’s Included?

  • GDSII & layer map
  • Place-Route views (.LEF)
  • Liberty library (.lib)
  • Verilog behaviour model
  • Netlist & SDF timing
  • Layout guidelines, application notes
  • LVS/DRC verification reports

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 40nm LP In Production

Specifications

Identity

Part Number
MIPI C/D-PHY Combo Rx IP in 40LP
Vendor
T2M GmbH

Provider

T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets. T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules. With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
Contact T2M GmbH
