MIPI C/D-PHY Combo IP
The C/D-PHY Combo IP delivers top-tier PPA characteristics and is mass production-proven across multiple customer SoCs.
Overview
The C/D-PHY Combo IP delivers top-tier PPA characteristics and is mass production-proven across multiple customer SoCs.
It is available as a complete subsystem with Qualitas’ own CSI-2 and DSI-2 controller IPs, enabling streamlined integration for camera and display applications.
The IP can be customized to meet specific SoC requirements, providing design flexibility for diverse system needs.
Key features
- Compliant to MIPI D-PHY v3.0, C-PHY v2.1 specification
- D-PHY TX/RX : 80Mb/s ~ 9.0Gb/s
- C-PHY TX/RX : 80Ms/s ~ 8.0Gs/s
- Area efficient macro optimized for placement for dense SoC designs
- Support Uni-(TX or RX) and Bi-directional(TX and RX) mode
- Support emphasis architecture over lossy channel for TX
- Support equalize architecture over lossy channel for RX
- Controllable Bandwidth-power scaling
- Low power mode turn-on based on channel condition
- Power gating architecture reduce leakage power
- Clock gating for low-power consumption
- Support Eye open monitor
- Support internal and external loopback test

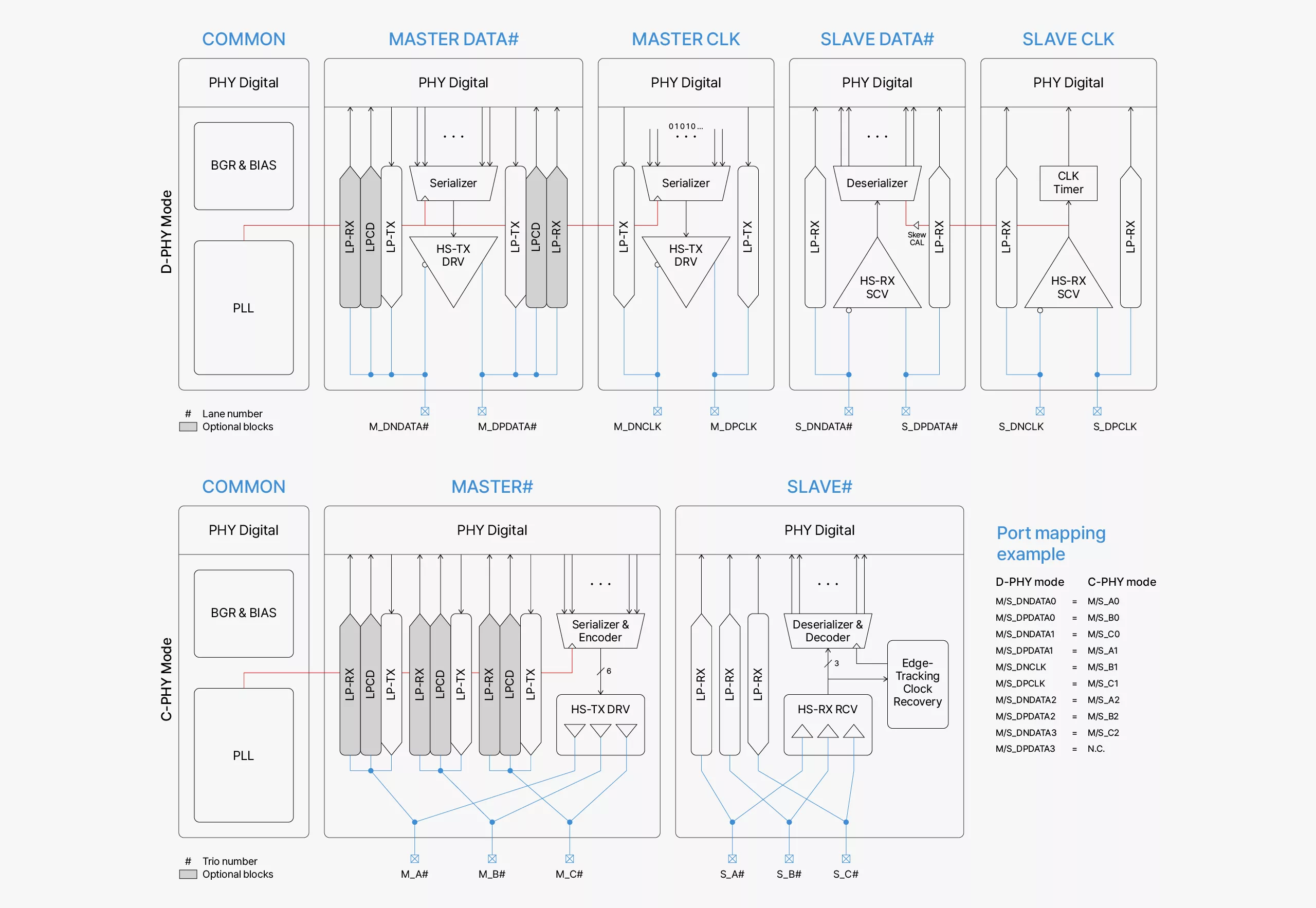

Block Diagram
C/D-PHY block diagram
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
C/D-PHY
Vendor
Qualitas Semiconductor
Type
Silicon IP
Standards & Interfaces
MIPI PHY
MIPI D-PHY
Provider
Qualitas Semiconductor
HQ:
South Korea
Qualitas Semiconductor is a leader in high-speed interconnect technology, which is at key infrastructure of the 4th Industrial Revolution, Encompassing AI, mobile devices, automotive systems, and displays. We specialize in high-speed interconnect circuit design, as well as ultra-fine semiconductor process design and verification. We operate our business through the licensing of high-speed interface IP and by providing comprehensive design services.
Moreover, we have established a robust design methodology to ensure high-reliability in ultra-fine semiconductor processes. With a proven track record in developing and mass-producing cutting-edge semiconductors, our expertise spans the most advanced technologies.
