MIPI M-PHY Verification IP

The MIPI M-PHY Verification IP provides an effective & efficient way to verify the components interfacing with MIPI M-PHY interfa…

Contact Provider Request Datasheet

Overview

The MIPI M-PHY Verification IP provides an effective & efficient way to verify the components interfacing with MIPI M-PHY interface of an IP or SoC. The MIPI M-PHY VIP is fully compliant with MIPI Alliance Specification for M-PHY Version 5.0. This VIP is a light weight VIP with easy plug-and-play interface so that there is no hit on the design cycle time.

Key features

  • Compliant to MIPI M-PHY Version 5.0
  • Supports two SUB-LINKs with configurable number of LANEs in each
  • Supports high speed and low speed modes for all modules
  • Supports HS-BURST with all HS-GEARs, HS-G1 to HS-G3 in HS-MODE
  • Supports both data rate series, RATE A-series and RATE B-series in HS-MODE
  • Supports both Type-I MODULE and Type-II MODULE in LS-MODE
  • Supports PWM-signaling with all PWM-Gears, PWM-G0 to PWM-G7 in Type-I MODULE of LS-MODE
  • Supports NRZ-Signaling in Type-II MODULE of LS-MODE
  • Supports RMMI protocol Interface at all interface widths
  • Supports 8b10b encoding in M-TX and decoding in M-RX
  • Supports bypassing of 8b10b encoding and decoding
  • Supports callbacks in M-TX and M-RX
  • Supports wide variety of Error Injections
  • Supports real time exhaustive protocol checks in Monitor
  • Supports assertions for protocol checks
  • Supports coverage of various scenarios and state transitions

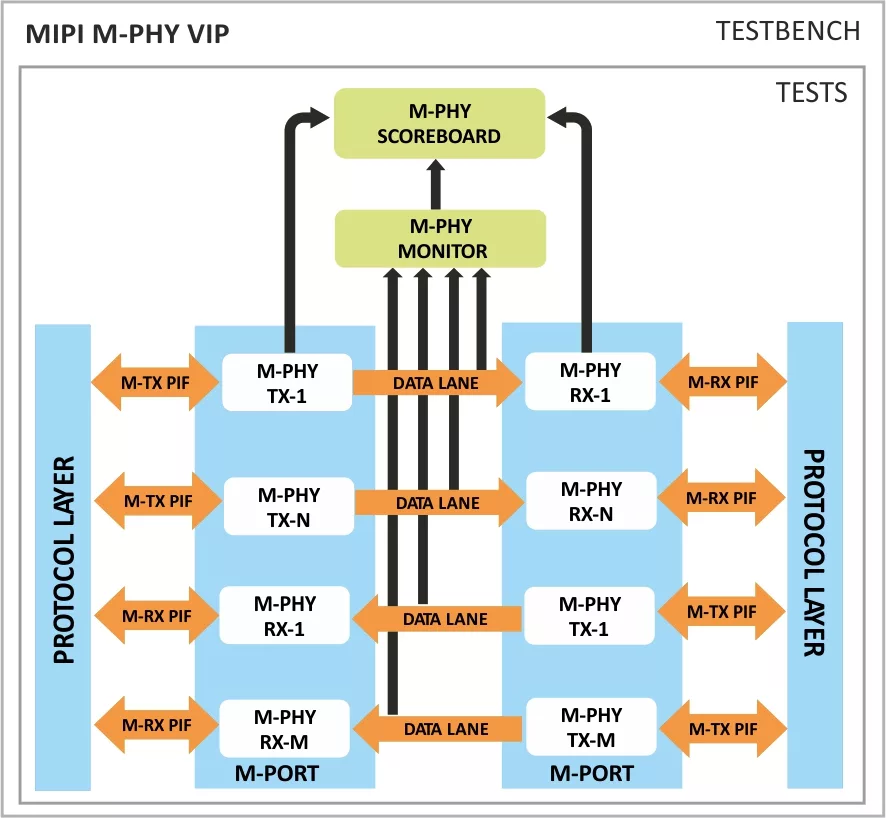

Block Diagram

MIPI M-PHY Verification IP block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • MIPI M-PHY TX/RX BFM/Agent
  • MIPI M-PHY Monitor and Scoreboard
  • Test environment and Test Suite-
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
    • User Test Suite
  • Integration Guide, User Manual, and Release Note

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
MIPI M-PHY Verification IP
Vendor
Truechip Solutions

Provider

Truechip Solutions
HQ: USA
Truechip is a leading provider of Design and Verification solutions – which help you to accelerate your design, lowering the cost and the risks associated in the development of your ASIC, FPGA and SoC. Truechip is a privately held company, with a global footprint and with a strong and experienced leadership team. Truechip was established in 2008 with a Mission to:
  • To create world class Verification IP Solutions
  • To provide expert consultancy to ASIC & SoC Design companies
  • To design SOCs from Architecture to Working Silicon
Our Vision is to:
  • To be the leading provider of Semiconductor IP Solutions
  • To be a one-stop-shop for Design and Verification
Our Guiding Principles are:
  • Customer Success
  • Commitment to Quality
    • Quality of Products
    • Quality of Engineers
  • Best in class Customer Support
  • Ethics and Integrity
We at Truechip leverage the extensive domain knowledge and expertise from current associations to provide complete set of design and verification solutions to our customers.
