MIPI DPHY Verification IP

MIPI DPHY Verification IP is compliant with MIPI DPHY specification and verifies DPHY devices.

Contact Provider Request Datasheet
Verification IP MIPI D-PHY View all specifications

Overview

MIPI DPHY Verification IP is compliant with MIPI DPHY specification and verifies DPHY devices. DPHY Verification IP is developed by experts who have worked on complex protocols before.

MIPI DPHY Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

MIPI DPHY Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Key features

  • Full MIPI DPHY Transmitter and Receiver functionality.
  • Supports 3.0 MIPI DPHY Specifications.
  • Supports both serial and PPI functionality testing.
  • Supports short and long packets
  • Supports BTA operations.
  • Supports all lane configuration
  • Supports multiple packets per transmission
  • Supports Skew Calibration.
  • Supports Alternate Calibration Sequence.
  • Supports Preamble Sequence.
  • Supports HS-Idle state in serial and PPI mode.
  • Supports differential and single ended mode of operation
  • Various kind of Transmitter and Receiver errors generation and detection
    • SoT Error
    • SoT Sync Error
    • EoT Sync Error
    • Escape Entry Command Error
    • LP Transmission Sync Error
    • False Control Error
  • Status counters for various events in bus.
  • Operates as a Transmitter, Receiver
  • Monitor, Detects and notifies the test bench of all protocol and timing errors.
  • Callbacks in node transmitter, receiver and monitor for user processing of data.
  • MIPI DPHY Verification IP comes with complete test suite to test every feature of MIPI DPHY specification.
  • Functional coverage for complete MIPI DPHY features

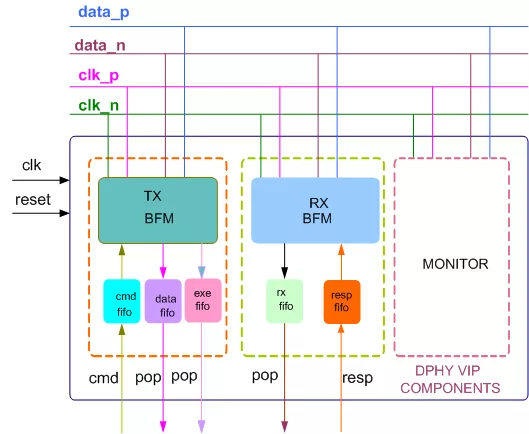

Block Diagram

MIPI DPHY VIP block diagram

Benefits

  • Faster testbench development and more complete verification of MIPI DPHY designs.
  • Easy to use command interface simplifies testbench control and configuration of Tx,Rx and monitor
  • Simplifies results analysis.
  • Runs in every major simulation environment.

What’s Included?

  • Complete regression suite containing all the MIPI DPHY testcases.
  • Examples showing how to connect various components, and usage of Tx,Rx and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
MIPI DPHY VIP
Vendor
SmartDV Technologies
Type
Verification IP

Standards & Interfaces

MIPI PHY
MIPI D-PHY

Provider

SmartDV Technologies
HQ: India
