High-performance RF front-end module for 5G mobile terminals

The WEA2630FE45G is a high-performance RF front-end module designed for 5G mobile terminals.

Contact Provider Request Datasheet

Overview

The WEA2630FE45G is a high-performance RF front-end module designed for 5G mobile terminals. The front-end combines a low noise high linearity LNA, a low insertion-loss, highisolation TR switch, a high-efficiency PA, a Power Detector and a Temperature Sensor with ADCs and a SPI. The WEA2630FE45G is powered from a single 3.6V supply and the biasing is generated with an on-chip bandgap reference voltage. The receive path (LNA+SW) is designed to provide 18dB of gain and a noise figure less than 4dB. The transmit path (PA+SW) provides saturated output power of 18dBm. The WEA2630FE45G is fabricated on GlobalFoundries 45RFSOI process occupying a total silicon area of 1.5mm2.

Key features

  • Integrated LNA, PA, SW, PD, TS, ADC, SPI
  • Frequency range 26GHz-30GHz
  • Tx PAE = 23% at 18 dBm Output Power
  • 18dBm Tx Output 1dbCP
  • Rx Noise Figure < 4dB, including Switch
  • 18dB Rx Gain
  • 0dBm Rx Input Referred IP3
  • 3.6V Supply Voltage

Block Diagram

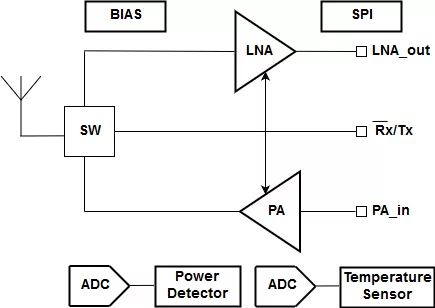

WEA2630FE45G block diagram

Applications

  • 5G, Sat

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
WEA2630FE45G
Vendor
Weasic Microelectronics
Type
Silicon IP

Provider

Weasic Microelectronics
HQ: Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
