Vendor: NTLab Category: RF Front End

Quadrature former 1.25-1.9 GHz

Quadrature former (QF) generate differential output signals with phase shift of 90° for each of 4 channel, coherent to input sign…

Contact Provider Request Datasheet

Overview

Quadrature former (QF) generate differential output signals with phase shift of 90° for each of 4 channel, coherent to input signal. QF has two inputs and works with one differential or two independent signals. Output phase adjustment for each channel gives minimal phase error

Key features

  • AMS035 BiCMOS 0.35 um
  • 4 independent outputs
  • Works with two input signal with different signals for output 1,2 and 3,4 respectively
  • Up to 4 outputs with one input signal
  • Adjustable output phase in range ±4.5° for each channel

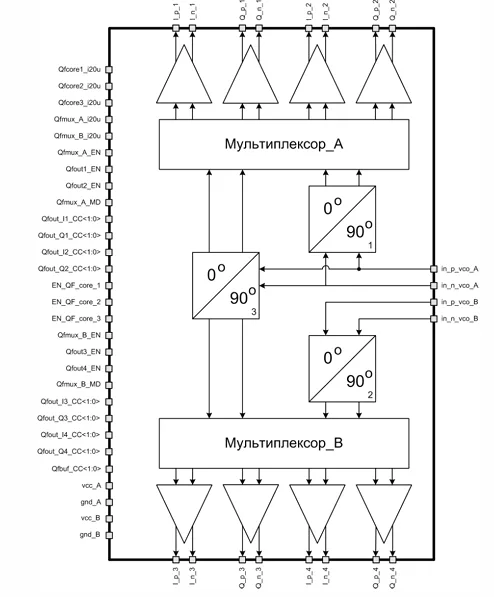

Block Diagram

350AMS_QF_01 block diagram

Applications

  • Quadrature signal processing for mixer

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
350AMS_QF_01
Vendor
NTLab
Type
Silicon IP

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
