Vendor: NTLab Category: RF Front End

500-1750MHz LNA with 1dB NF and 19dB gain

055TSMC_LNA_01 is an electronic amplifier intended to amplify a very low power signal without significantly degrading its SNR.

Contact Provider Request Datasheet
TSMC 55nm GP Silicon Proven View all specifications

Overview

055TSMC_LNA_01 is an electronic amplifier intended to amplify a very low power signal without significantly degrading its SNR. The operating frequency range from 500 to 1750MHz is achieved using several matching schemes.
The IP block contains voltage supply regulator intended to keep internal LNA Vcc at selected level.

Key features

  • TSMC CMOS 55nm
  • Operating frequency range from 500 to 1750 MHz
  • Low noise figure (1 dB)
  • Gain control range 19 dB
  • Build-in supply voltage controller

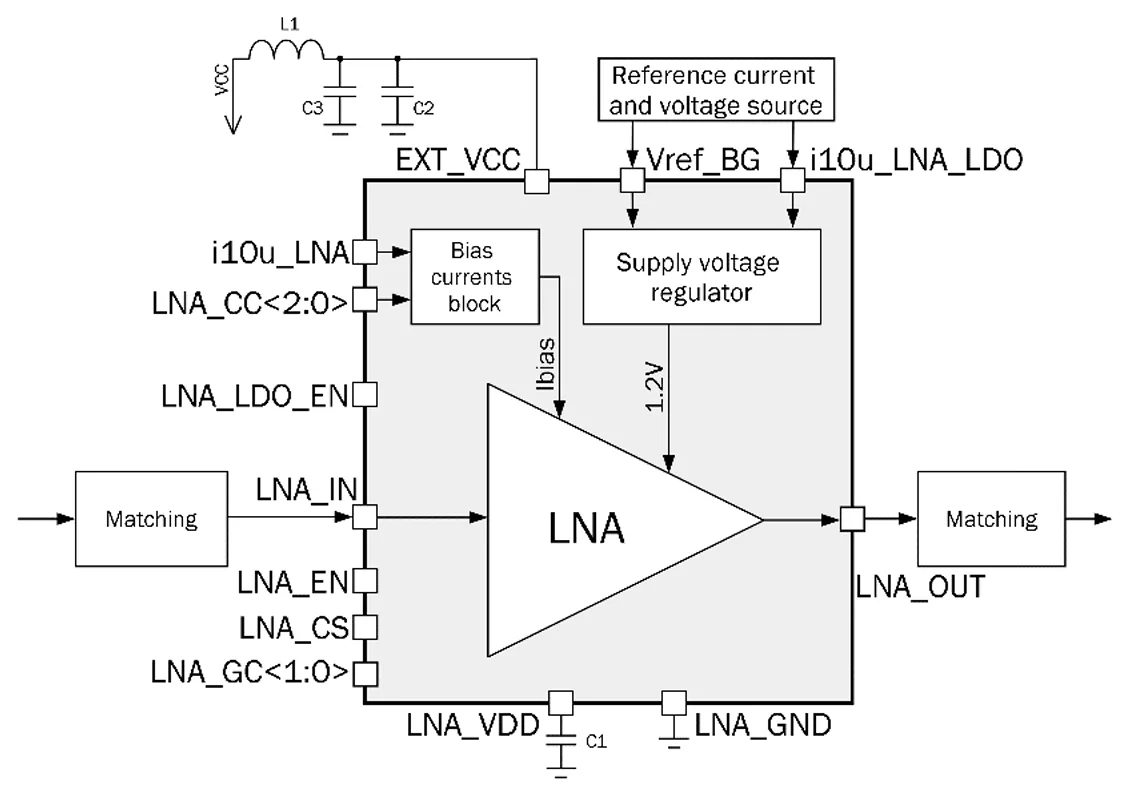

Block Diagram

055TSMC_LNA_01 block diagram

Applications

  • Front-end RF signal amplification in receivers

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 55nm GP Silicon Proven

Specifications

Identity

Part Number
055TSMC_LNA_01
Vendor
NTLab
Type
Silicon IP

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
