Vendor: Chipus Microelectronics Category: Power Management Unit

General Purpose PMU - Thermal shutdown and overvoltage protected - SilTerra 0.18 um

This macro-cell is a Power Management Unit (PMU) core designed for Silterra 0.18µm C18GH5 CMOS technology in TO (thick oxide) and…

Contact Provider Request Datasheet
Silterra 180nm G Silicon Proven View all specifications

Overview

This macro-cell is a Power Management Unit (PMU) core designed for Silterra 0.18µm C18GH5 CMOS technology in TO (thick oxide) and HP (thin oxide) process.

The circuit has two linear voltage regulators (one of which has an external feedback connection), internal voltage and bias current generators, built-in poweron-reset (POR), thermal shutdown and overvoltage protection. An internal voltage reference provides a range of voltages for the sake of flexibility of the IP.

The core is easily retargeted to any other CMOS technology with R-poly devices.

Key features

  • Regulated 1.8V output voltage with overvoltage protection
  • Regulated 2.7V output voltage
  • Bandgap reference = 1.2V
  • Built-in current reference and POR
  • Thermal shutdown

Block Diagram

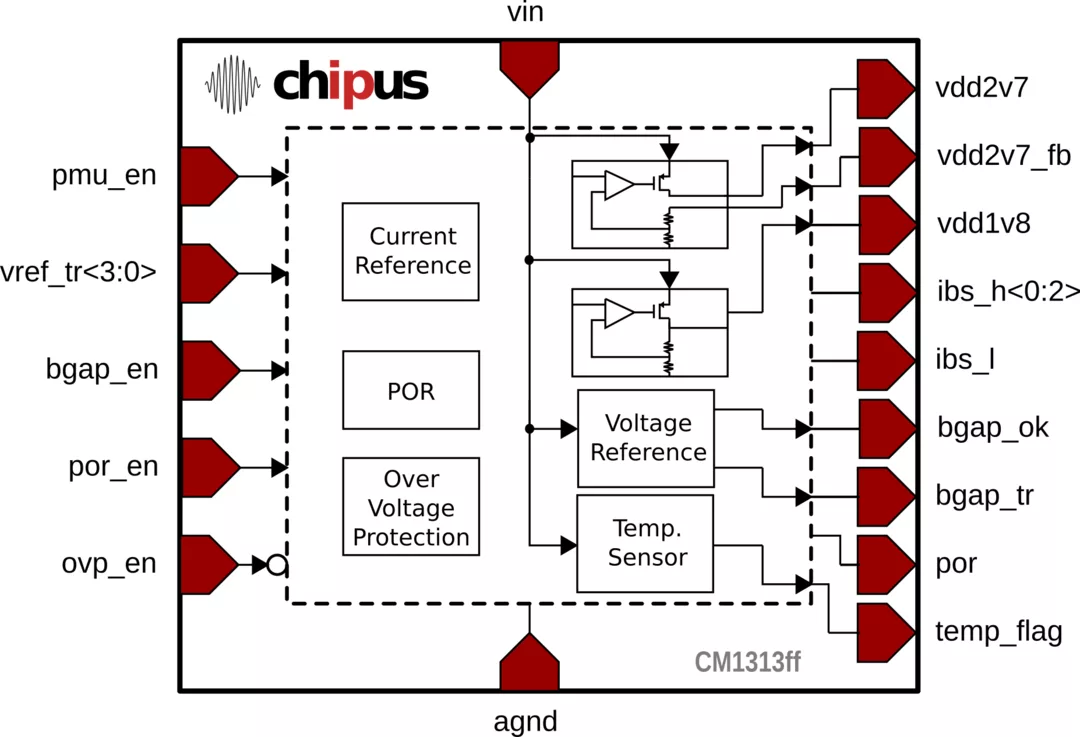

CM1313ff block diagram

Applications

  • Battery Chargers

What’s Included?

  • Datasheet/Integration Guide
  • HDL Model
  • Flat GDSII database/LVS netlist
  • Customer Support

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
Silterra 180nm G Silicon Proven

Specifications

Identity

Part Number
CM1313ff
Vendor
Chipus Microelectronics

Provider

Chipus Microelectronics
HQ: Brazil
Chipus Microelectronics (ISO 9001:2015 certified) is a semiconductor company focused on the development of mixed-signal ASICs, intellectual property (IP) blocks and IC design services. The company has more than 200 analog IP blocks in process nodes from 22nm to 0.35um of various foundries. Since its foundation in 2008, Chipus has worked with customers worldwide (South and North America, Europe, and Asia) with firm commitment and flexible client support. Besides analog and mixed-signal expertise, Chipus also offers custom digital IC design services having successfully delivered designs in FINFET technologies from RTL to backend. Headquartered in Florianópolis, Brazil, Chipus has a US subsidiary in Silicon Valley and sales teams in both USA and Europe.
