DVB-RCS2 Modulator

The DVB-RCS2 modulator is a low-complexity high-performance solution that allows for symbol rates of up to 160 MSymb/s on FPGAs.

Contact Provider Request Datasheet

Overview

The DVB-RCS2 modulator is a low-complexity high-performance solution that allows for symbol rates of up to 160 MSymb/s on state-of-the-art FPGAs. The IP core performs all tasks of the inner transmitter and complements the Creonic DVB-RCS2 receiver solutions (DVB-RCS2 demapper and DVB-RCS2 turbo decoder).

DVB-RCS2 is the first standard to adopt the high performance 16-states turbo codes. New modulation schemes (8-PSK and 16-QAM) help to increase spectral efficiency even further. The outstanding error correction performance of the DVB-RCS2 turbo code makes it the ideal candidate for further applications where high spectral efficiency is key for lowering costs.

Key features

  • Compliant with DVB-RCS2
  • Support for Pi/2-BPSK, QPSK, 8-PSK, and 16-QAM
  • Support for all linear burst modulation waveforms specified in Annex A
  • Output baseband-filtered and gain adjusted samples

Block Diagram

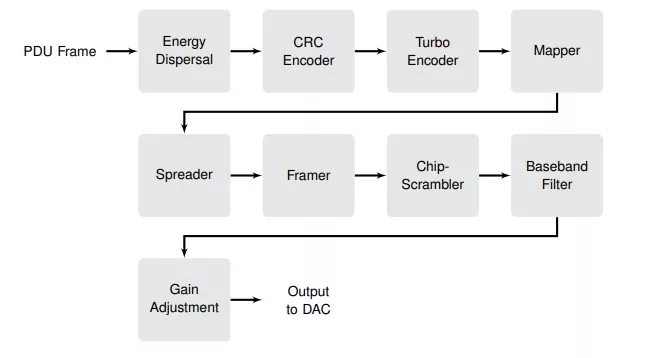

CREONIC CODING DVB RCS2 block diagram

Benefits

  • Easy-to-use AXI4-Stream handshake interfaces (data input and output)
  • AXI4-Lite interface for gain configuration and retrieval of status information
  • Provides filtered and gain-adjusted baseband signal
  • The modulator comprises of scrambler (energy dispersal), CRC encoder, turbo encoder, framer, bit mapper, baseband filter (roll-off 20%), and gain adjustment
  • Frame-to-frame configuration of waveform ID
  • Low-power and low-complexity design
  • Available for ASIC and FPGAs (AMD Xilinx, Intel, Microchip)
  • Deliverable includes VHDL source code or synthesized netlist, VHDL testbench, and bit-accurate Matlab, C or C++ simulation model

Applications

  • Satellite communication
    • Return Channel
    • Interactive Services
    • Professional Services

What’s Included?

  • VHDL source code or synthesized netlist
    HDL simulation models
    VHDL testbench
    Bit-accurate Matlab, C or C++ simulation model
    Comprehensive documentation

Files

Product Sheet Download
