Driver Amplifier operating from 1-16 GHz and can be used in wide band application or to drive the high-power amplifier
RFDA07C Driver Amplifier operates from 1 - 16 GHz and can be used in wide band application or to drive the high-power amplifier.
Overview
RFDA07C Driver Amplifier operates from 1 - 16 GHz and can be used in wide band application or to drive the high-power amplifier. The amplifier provides 24 dB small signal gain and 19.8 dBm of Output P1dB. The input and output are matched to 50 ohms with on-chip DC blocking capacitors. The device is specifically designed to use in point-to-point radios for cellular backhaul Application, 5G RF Transceiver & SATCOM. The technology used to design DA is 0.1um GaAs pHEMT process. Results are shown in datasheet with all parasitics & coupling effects at desired frequency.
Key features
- RF Frequency: 1-16 GHz
- Gain of 24 dB
- Output P1dB of 19.8 dBm
- OIP3 of 28.2 dBm
- Output Saturated Power: 22 dBm
- Noise Figure @ 2.4 GHz : 2.2 dB
- Noise Figure @ 5 GHz : 2.1 dB
- Noise Figure @ 8 GHz : 2.2 dB
- Noise Figure @ 12 GHz : 2.5 dB
- Noise Figure @ 16 GHz : 3.5 dB
- Bias: VDD1, VDD2 = 4 V, VGG1, VGG2 = -0.4 V,
- ID= 122 mA
- 0.1um GaAs pHEMT Technology
- Die Size: 1.15 mm x 1.54 mm
- This IP is similar in performance with Custom MMIC's CMD295

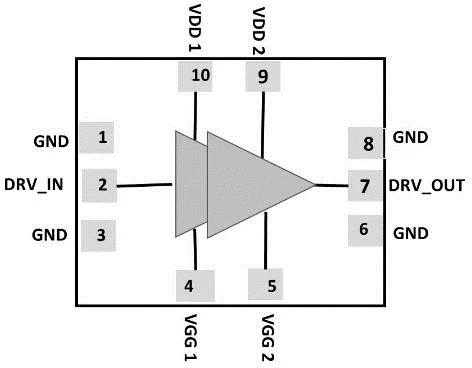

Block Diagram
RFDA07C block diagram
Benefits
- Wideband gain
- 50? Matched RF Input and Output
- Wideband stability
- Low cost
- Low current
- Porting: IP can be ported to 65nm Si / CMOS node
Applications
- Satellite Communication
- Point to point communication system
- Backhaul Application
- Microwave Radio
- Military & Space
- RADAR
What’s Included?
- Schematic and Netlist
- Abstract Model (.lib file)
- Layout View(Optional)
- Behavioral model (Circuit & EM simulation)
- Extracted View(Optional)
- GDSII
- DRC, LVS, Antenna report
- Test bench with saved configuration(Optional)
- Documentation
Specifications
Identity
Part Number
RFDA07C
Vendor
RFIC Solutions, Inc.
Type
Silicon IP
Provider
RFIC Solutions, Inc.
HQ:
United States
RFIC Solutions, Inc. is a fabless semiconductor company focused exclusively on wireless Solutions. RFIC Solutions Inc. offer RFIC, Analog, Digital & Mixed signal IC design services. RF Modules/Board design Services & FPGA design & development services are also provided. RFIC Solutions designs highly integrated system on chip (SOC) and system on a package (SOP); custom ICs, MIC for any wireless systems including cellular, Wi-Fi, WLAN, WiMax and UWB systems.
We have designed more than 600 RFICs covering frequency range from 0.01 to 100 GHz. We have expertise in designing LNA, PA, VCO, PLL, complete Transceiver IC, ADC, Mixers, SPDT/DPDT switches at high frequency, 6Bit Attenuator, Complex Band Pass Filter, Op-Amp, PGA, VGA, Prescaler for applications ranging from DC to 40 GHz. These designs are available on SiGe BiCMOS, Si CMOS InGaP, RFCMOS, GaAs pHEMT, technologies provided by our foundry partners Tower Jazz semiconductor, GCS, TSMC, Triquint, Globalfoundries, IBM, Win semiconductors.
