High Drive Strength Voltage Buffer on TSMC 16 FFC
The ODT-OBF-ULP-DC-16FFCT is a voltage buffer with a high drive capability and is stable up to a 1nF output load.
Overview
The ODT-OBF-ULP-DC-16FFCT is a voltage buffer with a high drive capability and is stable up to a 1nF output load. It can be used to daisy-chain voltages between different AFEs and different SoCs.
The ODT-OBF-ULP-DC-16FFCT is powered by a 1.8V analog supply and a 0.8V digital supply.
Key features
- TSMC 16/12nm FFC
- Output voltage buffer
- ±2.5mV 3σ voltage accuracy
- Current sink capability of 2mA
- 1nF drive capability

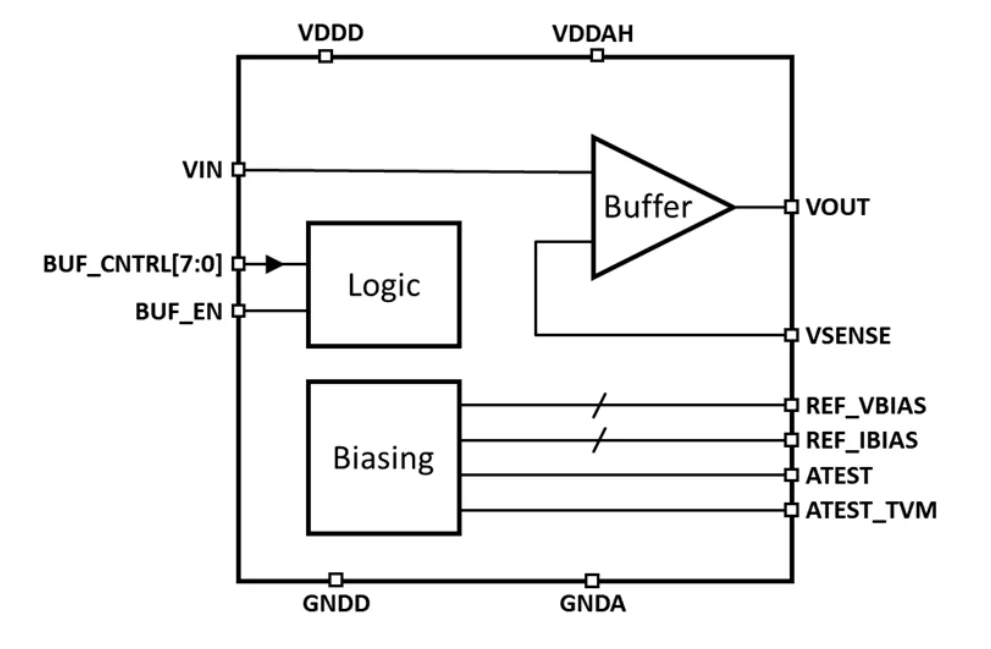

Block Diagram
ODT-OBF-ULP-DC-16FFCT block diagram
Benefits
- High Performance Low Power, Low Area
Applications
- General purpose voltage buffer
- Data converter reference buffer
What’s Included?
- Datasheet
- Hard GDS Database (GDSII)
- Characterization Report (as applicable)
- Abstract View (LEF) for top level connectivity
- Behavioral Model (as appropriate)
- Integration and Customer Support
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 16nm | FFC | — |
Specifications
Identity
Part Number
ODT-OBF-ULP-DC-16FFCT
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP
Provider
Omni Design Technologies, Inc.
HQ:
USA
Omni Design Technologies, Inc. is a developer of disruptive, ultra-low power semiconductor embedded circuits (IP Cores), including ultra-low power analog circuits, highly-efficient interface circuits and connected sensors. Our patented and proprietary technology offers solutions that use dramatically lower power and provide superior performance, architected from the ground up to take advantage of deep sub-micron CMOS processes. Omni Design’s mission is to provide a wide range of ultra low-power, high performance embedded circuits configured to enable highly-differentiated semiconductor systems and plug-and-play system-on-chip (SoC) development. Our IP offerings target SoCs that address a wide range of application areas including IoT, test and measurement, high speed interfaces, communications, medical imaging, and sensor hubs. Omni Design Technologies, Inc. is a privately held company with offices in Milpitas, CA and Boston, MA. Omni Design was founded in 2015 by a team of semiconductor industry veterans, technologists, and experienced entrepreneurs with a successful track record of delivering high performance analog solutions that advance the state of the art.
