8 to 12 GHz power amplifier
055TSMC_PA_05 is a block includes a power amplifier (PA), output power adjustment system and supply voltage stabilizer.
Overview
055TSMC_PA_05 is a block includes a power amplifier (PA), output power adjustment system and supply voltage stabilizer. The PA is designed to provide the required power of the transmission path output signal and provides a wide range of output power adjustment. The output power adjustment system is designed to generate a gain control signal, detect the output signal and set thresholds for monitoring its level. The adjustment system can operate in one of two modes:
- Automatic mode
- Manual mode with digital control
The supply voltage stabilizer is used to form an internal reference voltage, and also performs the function of a voltage regulator with the ability to adjust the output level.
Key features
- TSMC CMOS 55 nm
- AB class PA
- Frequency range from 8 GHz to 12 GHz
- Output power adjustment range from -25 dBm to +3 dBm
- Built-in voltage regulator
Block Diagram

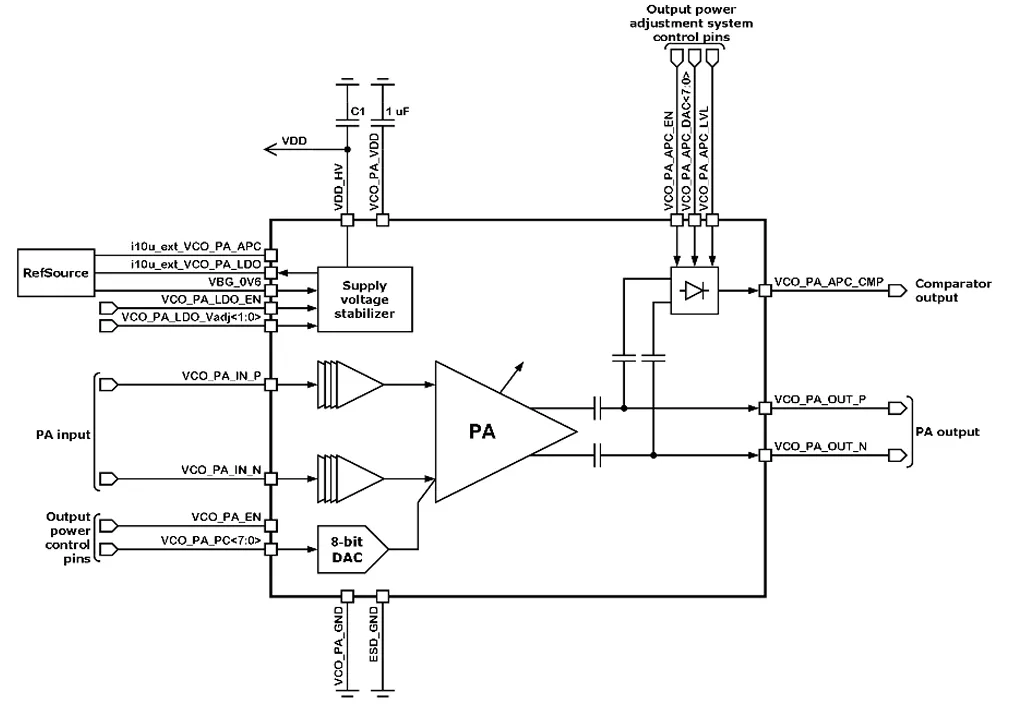

055TSMC_PA_05 block diagram
Applications
- Portable transmitters
- Portable transceivers
- Mobile communication devices
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Files
Note: some files may require an NDA depending on provider policy.
