Up to +/-90V low power high-voltage single-ended amplifier
180XFAB_OpAmp_01 is two-stage amplifier.
Overview
180XFAB_OpAmp_01 is two-stage amplifier. The first (low-voltage) cascade provides pre-amplification and matching of the common-mode component of the signal with the input of the second, high-voltage cascade. The second (high-voltage) cascade provides the main voltage gain, the output circuits of this cascade are powered by high-voltage voltages of ±100 Volts. The first stage of the single-ended amplifier is assembled on a single-ended op-amp with differential inputs and single-end output. It is possible to adjust the quiescent current of the output stage of the amplifier. Quiescent current can be adjusted by bits bias<3:0>. The input impedance of the amplifier can be in the range of 200 ÷ 320 k? and depends on the gain. There are two outputs in the amplifier: outn is the main output, outp should be connected to the analog ground. The maximum output amplitude is 90V.
Key features
- XFAB XT018 technology process
- Output voltage range: ±90V
- Cload: 10-30pF
- THD: <1%
- Resistor feedback loop
Block Diagram

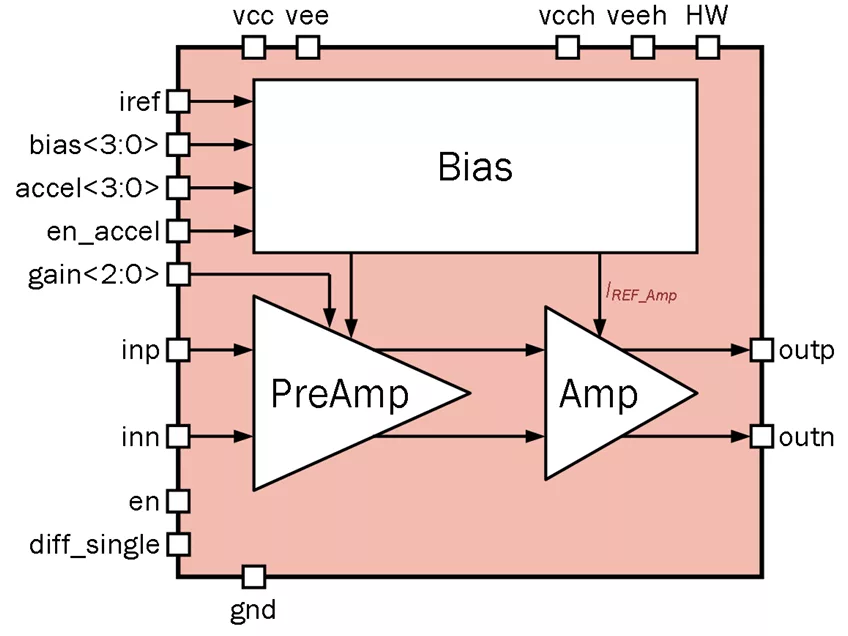

180XFAB_OpAmp_01 block diagram
Applications
- Audio equipment
- Measuring equipment
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
180XFAB_OpAmp_01
Vendor
NTLab
Type
Silicon IP
Provider
NTLab
HQ:
Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers.
NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software.
NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets.
Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
Learn more about Amplifier IP core
