250iHP_PGA_01 is a programmable gain amplifier (PGA) with low-pass filter (LPF).
Overview
250iHP_PGA_01 is a programmable gain amplifier (PGA) with low-pass filter (LPF). The block consists of 2 amplification stages with tunable (5-bit control) gain from 0 to 40dB. Both stages have single-ended input and output and produce max 20dB gain each. Gain can be set by the digital code GC<4:0>. Internal LPF is targeting 15 kHz cut-off frequency. Cut-off frequency adjustment can be held by changing of BW1<3:0> and BW2<3:0> inputs for 1st and 2nd amplifiers respectively. DC offset adjustment can be held by setting of OFFSET1<3:0> and OFFSET2<3:0> inputs. The IP features are low power consumption and compact area.
Key features
- iHP SG25H4 SiGe BiCMOS 0.25 um
- 2.5 V supply voltage
- Gain range 0…40 dB (5-bit control)
- Low current consumption: 0.5mA
- Compact die area: 0.373 mm2

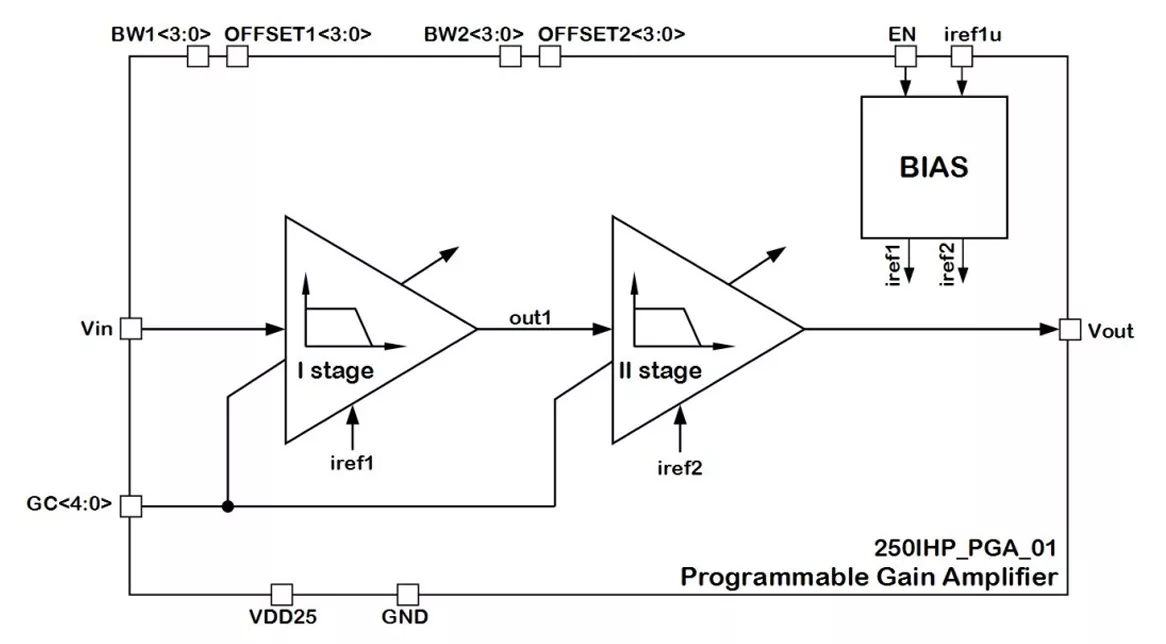

Block Diagram
250iHP_PGA_01 block diagram
Applications
- AGC systems
- Gain control systems
- Receivers
What’s Included?
- Schematic or NetList
- Abstract view (.lef and .lib files)
- Layout (optional)
- Verilog behavior model
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
250iHP_PGA_01
Vendor
NTLab
Type
Silicon IP
