Vendor: Silvaco, Inc. Category: SPI / QSPI XSPI

AHB-Lite Slave to SPI Master

The AHB-Lite to SPI Bridge is used to translate 32-bit AHB-Lite Writes and Reads to Writes and Reads over a SPI interface.

Contact Provider Request Datasheet

Overview

The AHB-Lite to SPI Bridge is used to translate 32-bit AHB-Lite Writes and Reads to Writes and Reads over a SPI interface. A custom 32-bit protocol is implemented on the SPI bus.

The AHB-Lite to SPI Bridge has two AHB-Lite Slave component interfaces; one for access to the control/status registers (Register Interface), and another for access to the external SPI device (External Interface). The Bridge also has a SPI interface that operates exclusively as a SPI Master component device.

Key features

  • 32 bit serial transmit & receive
  • AHB Configuration Register Interface
  • AHB Interface for accessing external SPI device
  • Dual-bit or Single-bit mode operation
  • Asynchronous SCLK operation
  • 32 word Transmit FIFO
  • 16 word Receive FIFO
  • Interrupt control
  • LSB mode
  • Support for all SPI modes (CPOL, CPHA)
  • Up to 4 Slave components under Master component control

Block Diagram

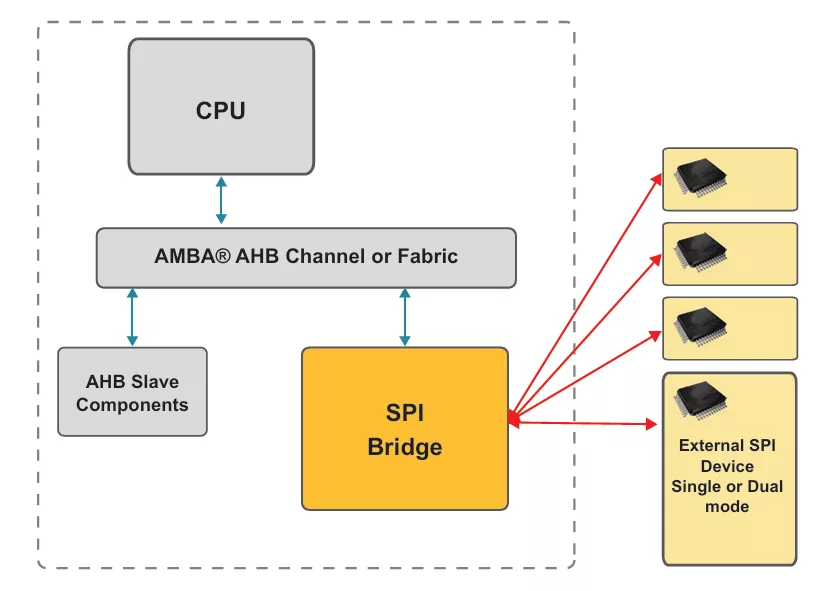

AHB-Lite Slave to SPI Master block diagram

What’s Included?

  • Verilog Source
  •  Complete Test Environment
  •  AHB Bus Functional Model

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
