Vendor: Omni Design Technologies, Inc. Category: DAC

Ultra-low power, 5MSPS voltage output, 16-bit DAC with a class AB output buffer

The ODT-DAC-16B5M-12 is an ultra-low power, voltage output, 16-bit DAC with a high performance, class AB output buffer.

Contact Provider Request Datasheet
16 Bit View all specifications

Overview

The ODT-DAC-16B5M-12 is an ultra-low power, voltage output, 16-bit DAC with a high performance, class AB output buffer.

The DAC uses a proprietary architecture that guarantees monotonicity. It also features low glitch, low drift, small area and low power consumption. VSENSE pin is provided to set the load voltage with high accuracy. Both VOUT and VSENSE pins must be routed to the load.

The DAC’s 16-bit parallel interface can be updated at up to 5 MHz on the CLKIN rising edge. When EN_DAC pin is low, the DAC enters a power down mode, where both VOUT and VSENSE pins become high impedance. DAC becomes active when the EN_DAC pin is high.

Key features

  • 16-bit resolution
  • Single ended, voltage output
  • Rail to rail output buffer
  • 2kΩ // 200pF load drive capability
  • Guaranteed monotonic.
  • Low glitch energy
  • Ultra-low current consumption
  • Functional from -40°C to 150°C

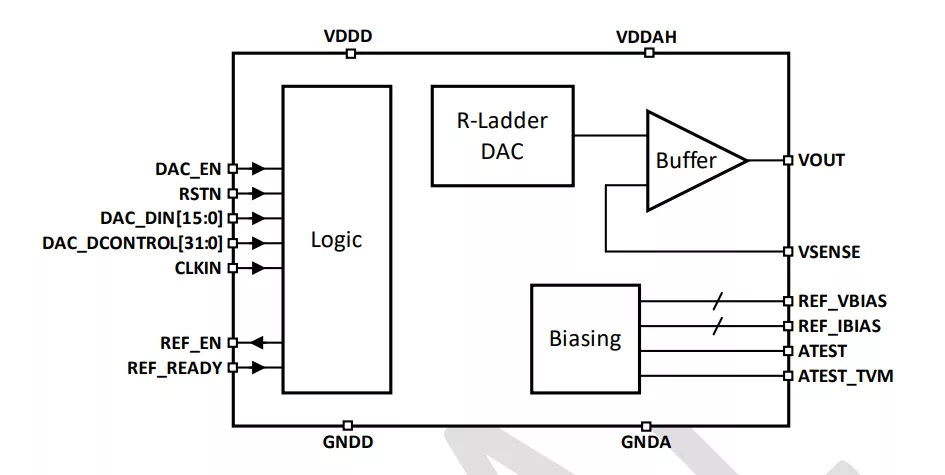

Block Diagram

ODT-DAC-16B5M-12 block diagram

Applications

  • Test and measurement
  • Control loops for telemetry
  • Process control loops
  • Programmable voltage reference
  • Portable devices

What’s Included?

  • Datasheet
  • Hard Macro (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model
  • Integration and Customer Support

Specifications

Identity

Part Number
ODT-DAC-16B5M-12
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP

Analog

Resolution bits
16 Bit

Provider

Omni Design Technologies, Inc.
HQ: USA
Omni Design Technologies, Inc. is a developer of disruptive, ultra-low power semiconductor embedded circuits (IP Cores), including ultra-low power analog circuits, highly-efficient interface circuits and connected sensors. Our patented and proprietary technology offers solutions that use dramatically lower power and provide superior performance, architected from the ground up to take advantage of deep sub-micron CMOS processes. Omni Design’s mission is to provide a wide range of ultra low-power, high performance embedded circuits configured to enable highly-differentiated semiconductor systems and plug-and-play system-on-chip (SoC) development. Our IP offerings target SoCs that address a wide range of application areas including IoT, test and measurement, high speed interfaces, communications, medical imaging, and sensor hubs. Omni Design Technologies, Inc. is a privately held company with offices in Milpitas, CA and Boston, MA. Omni Design was founded in 2015 by a team of semiconductor industry veterans, technologists, and experienced entrepreneurs with a successful track record of delivering high performance analog solutions that advance the state of the art.
