14-bit 2-channel 40-500 MSPS current DAC

065STM_DAC_01 is a two-channel high-speed 14-bit digital-to-analog converter (DAC) designed to convert a digital signal into an a…

Contact Provider Request Datasheet
14 Bit View all specifications

Overview

065STM_DAC_01 is a two-channel high-speed 14-bit digital-to-analog converter (DAC) designed to convert a digital signal into an analog differential signal. The DAC is based on a segmentation architecture combined with a random cell shuffling algorithm to achieve high dynamic response, statistical response, and wide bandwidth.

Key features

  • STM CMOS 65 nm
  • Resolution 14-bit
  • 2-channel
  • Sampling rate from 40 to 500 MSPS
  • Differential nonlinearity +/- 1.5 LSB
  • Integral nonlinearity +/- 2.0 LSB
  • Small area 0.708 mm2

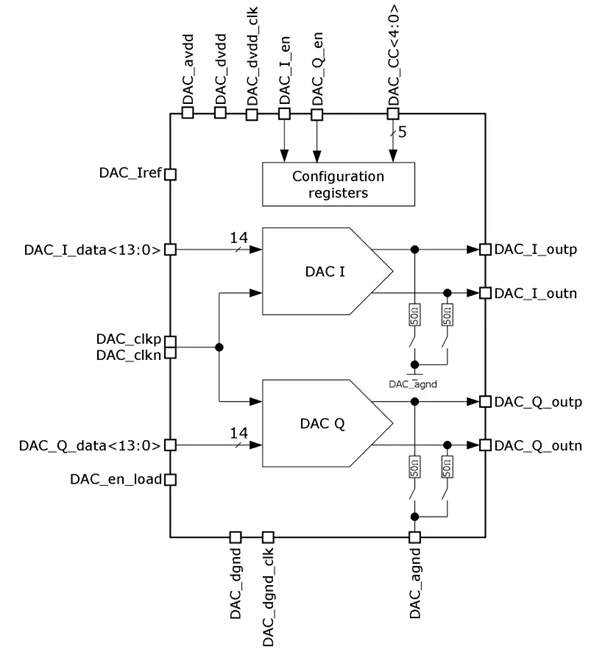

Block Diagram

065STM_DAC_01 block diagram

Applications

  • Wireless infrastructures
  • Broadband communications
  • Picocell, femtocell base stations
  • Medical instrumentation
  • Ultrasound transducer excitation
  • Signals and arbitrary waveform generators

What’s Included?

  • Schematic or NetList
  • Abstract view (.lef and .lib files)
  • Layout (optional)
  • Behavioral model (for functional verification)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation
