12-bit 16-Gsps DAC

Unleash the power of precision and innovation with the NS_TX_16G_T16, a 12-bit, 16-Gsps Digital-to-Analog Converter (DAC) array.

Contact Provider Request Datasheet
12 Bit TSMC 12nm FFC Silicon Proven View all specifications

Overview

Unleash the power of precision and innovation with the NS_TX_16G_T16, a state-of-the-art 12-bit, 16-Gsps Digital-to-Analog Converter (DAC) array.

This cutting-edge product redefines DAC performance and size metrics.. Flexible Channel Configurations: Choose from 1, 2, 4, or 8-channel configurations to meet your specific needs. Shared clock receiver, serial interface and central bias provide impeccable DAC matching.

The NS_TX_16G_T16 is your gateway to enhanced digital signal transmission capabilities, enabling you to transmit high-speed analog signals with utmost precision and reliability.

Key features

  • 16-Gsps peak sample rate
  • 12 bit resolution (10-bit option)
  • SMALLER than competing solutions
  • LOWER POWER than competing solutions
  • MORE ROBUST than competing solutions
  • 2T2R silicon prototype evaluation system available
  • Ready for Analog Macro Block (AMB) assembly with multiple ADC, DAC, PLL cores as well as I/O cells, flip-chip packaging bumps, etc. to facilitate system-on-chip integration.

Block Diagram

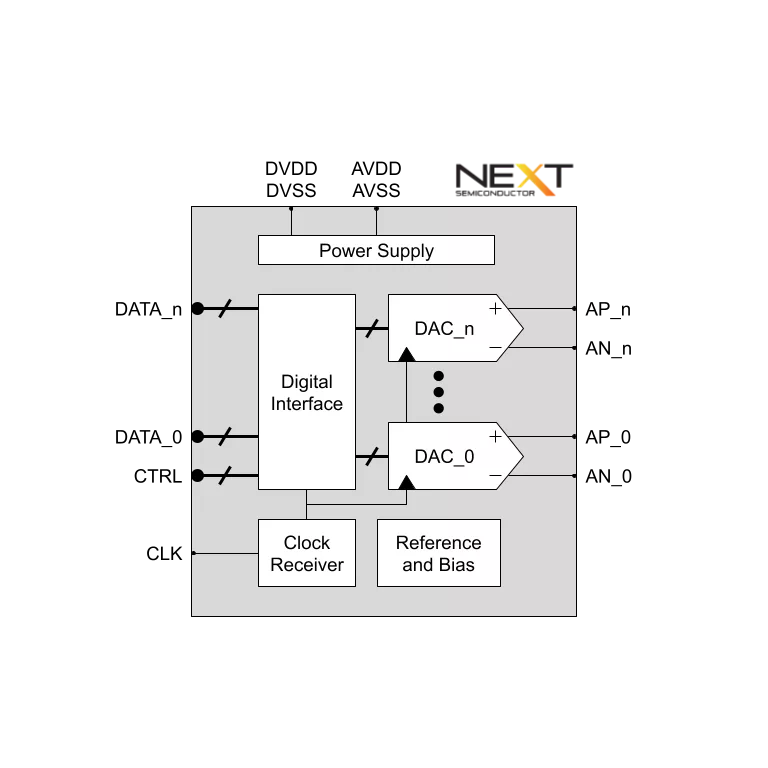

NS_TX_16G_T16 block diagram

Benefits

  • Our DAC designs are designed for integration into complete Analog Macro Blocks that include associated ADCs, PLLS, and digital signal processing (i.e. DDC/DUC/DPD/CFR) for seamless integration into SoCs.

Applications

  • 5G Base stations
  • Automotive Driver Assistance Systems (ADAS)
  • Direct-RF
  • Multi-carrier and Multi-standard wireless infrastructure
  • Satellite communications
  • Test equipment
  • Software Defined Radio
  • Military and Aerospace: Radar, EW, EA, ISR, ELINT, Communications

What’s Included?

  • Datasheet
  • Userguide
  • Hard Macro (GDSII)
  • CDL Netlist
  • Top-level Abstract View (LEF)
  • Customer Support and integration review

Silicon Options

Foundry Node Process Maturity
TSMC 12nm FFC Silicon Proven

Specifications

Identity

Part Number
NS_TX_16G_T16
Vendor
NEXT Semiconductor
Type
Silicon IP

Analog

Resolution bits
12 Bit

Provider

NEXT Semiconductor
HQ: United States
