Vendor: NTLab Category: DAC

12-bit 1-channel up to 1 MSPS R/2R DAC

028TSMC_DAC_01 is a 12-bit digital to analog converter (DAC) with sample rates up to 1 MSPS.

Contact Provider Request Datasheet
12 Bit TSMC 28nm Pre-Silicon View all specifications

Overview

028TSMC_DAC_01 is a 12-bit digital to analog converter (DAC) with sample rates up to 1 MSPS. The block contains four main blocks: reference voltage source, bias voltage source, DAC core and control digital module. DAC core consist of the R/2R matrix and output operational class AB amplifier. The DAC operates directly from VDDIO/VDD33 supplies which are filtered analog supply pins of the chip. Analog voltage references can be generated from internal buffer or supplied externally.

Key features

  • TSMC 28nm eFlash
  • 12-bit resolution
  • Single-ended one channel output
  • External clock
  • Output sampling rate up to 1MSPS
  • Current consumption in operation mode: 0.7mA@ VDDIO=5.0V
  • External input frequency 1MHz
  • Analog IO supply voltage 5.0V (3.3V option)
  • 3.3V supply voltage
  • Core supply voltage 0.9V
  • Automotive compliant: -40?C to +150?C
  • GDS Area ~0.11mm2

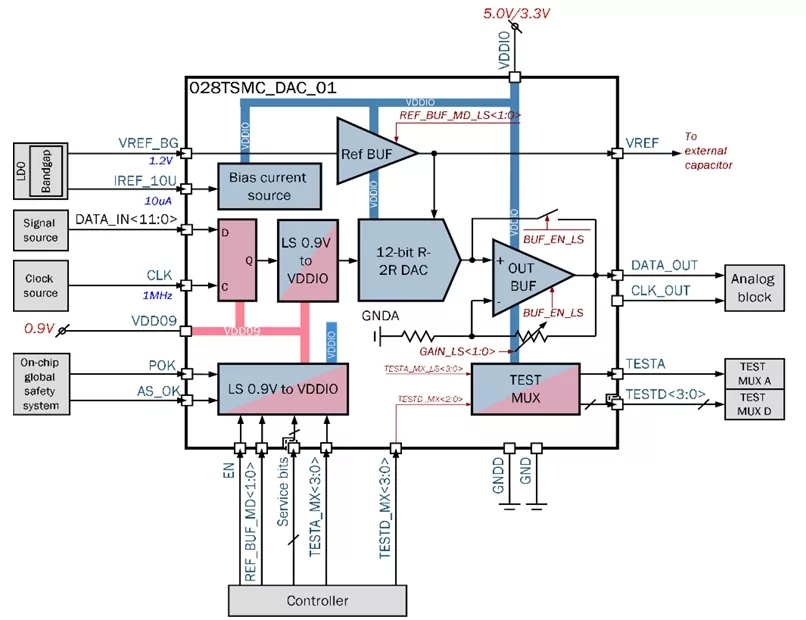

Block Diagram

028TSMC_DAC_01 block diagram

Applications

  • Digital to analog signal conversion
  • Automotive applications
  • Receivers, transceivers
  • Measurement environment

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 28nm 28nm 280 nm Pre-Silicon

Specifications

Identity

Part Number
028TSMC_DAC_01
Vendor
NTLab
Type
Silicon IP

Analog

Resolution bits
12 Bit

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
