Vendor: Omni Design Technologies, Inc. Category: DAC

14-bit, 8-GSPS IQ DAC on GF 22FDX

The ODT-DAC-14B8GIQ-GF22FDX is a high performance dual channel current steering 14- bit DAC that operates as an IQ Pair with an u…

Contact Provider Request Datasheet
14 Bit GlobalFoundries 22nm FDX View all specifications

Overview

The ODT-DAC-14B8GIQ-GF22FDX is a high performance dual channel current steering 14- bit DAC that operates as an IQ Pair with an update rate of up to 8GSPS. The dual DACs uses a proprietary architecture that reduces harmonic and intermodulation distortions at high output frequency and amplitudes.

The high-performance dual DACs support a peak CW output power of 0dBm and achieve up to -158Bm/Hz noise spectral density with excellent SFDR.

The dual DACs are powered by a 1.8V and 1.2V analog supply, a 2.1V output supply and a 0.8V digital supply.

Key features

  • GF22FDX Process
  • 14-bit resolution
  • 8-GSPS update rate
  • Dual DAC configured as IQ Pair
  • 0dBm CW output power
  • Differential 20mA current (sink) outputs
  • 4 GHz output bandwidth
  • -158dBm/Hz noise spectral density
  • 63dBc SFDR including HD2, HD3 at FO=1.7 GHz, -1dBFS
  • Embedded direct digital synthesis (DDS) module.
  • Functional from -40°C to 125°C

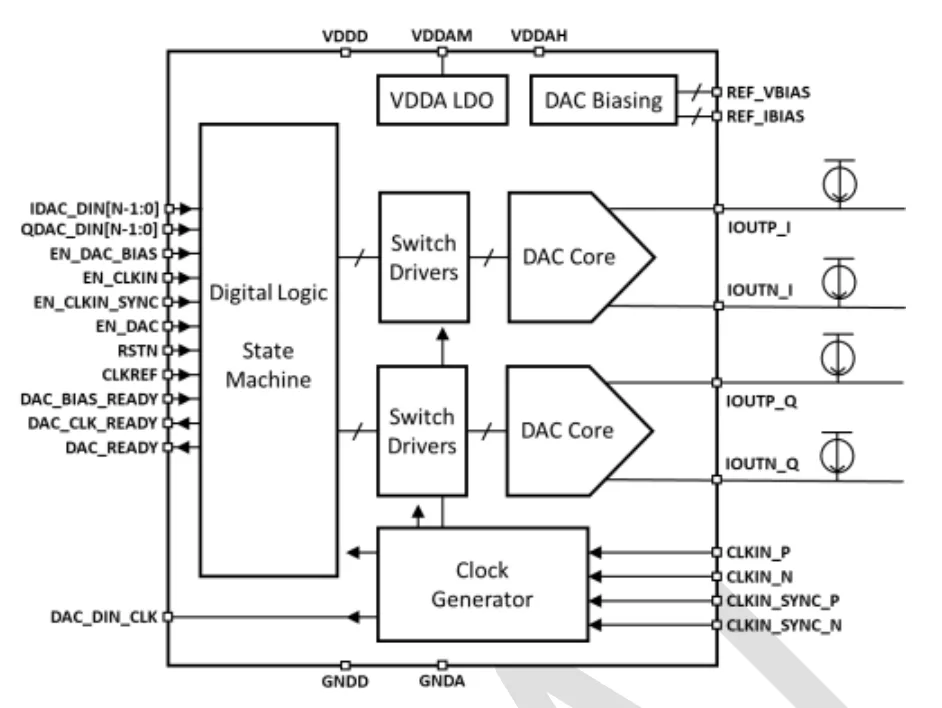

Block Diagram

ODT-DAC-14B8GIQ-GF22FDX block diagram

Benefits

  • High Performance Low Power, Low Area

Applications

  • General purpose software defined radio
  • DOCSIS transmitter
  • Cellular base station
  • Broadband communications
  • Wideband satellite transmitter

What’s Included?

  • Datasheet
  • Hard GDS Database (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model (as appropriate)
  • Integration and Customer Support

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX —

Specifications

Identity

Part Number
ODT-DAC-14B8GIQ-GF22FDX
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP

Analog

Resolution bits
14 Bit

Provider

Omni Design Technologies, Inc.
HQ: USA
Omni Design Technologies, Inc. is a developer of disruptive, ultra-low power semiconductor embedded circuits (IP Cores), including ultra-low power analog circuits, highly-efficient interface circuits and connected sensors. Our patented and proprietary technology offers solutions that use dramatically lower power and provide superior performance, architected from the ground up to take advantage of deep sub-micron CMOS processes. Omni Design’s mission is to provide a wide range of ultra low-power, high performance embedded circuits configured to enable highly-differentiated semiconductor systems and plug-and-play system-on-chip (SoC) development. Our IP offerings target SoCs that address a wide range of application areas including IoT, test and measurement, high speed interfaces, communications, medical imaging, and sensor hubs. Omni Design Technologies, Inc. is a privately held company with offices in Milpitas, CA and Boston, MA. Omni Design was founded in 2015 by a team of semiconductor industry veterans, technologists, and experienced entrepreneurs with a successful track record of delivering high performance analog solutions that advance the state of the art.
