12-bit, 8-GSPS DAC Ultra Low Power on 7nm

The ODT-DAC-12B8G-7nm is a highperformance current steering 12-bit DAC that operates at an update rate of up to 8GSPS.

Contact Provider Request Datasheet
12 Bit View all specifications

Overview

The ODT-DAC-12B8G-7nm is a highperformance current steering 12-bit DAC that operates at an update rate of up to 8GSPS. The DAC uses a proprietary architecture that reduces harmonic and intermodulation distortions at high output frequency and amplitudes.

The high-performance DAC supports a peak CW output power of 0dBm and achieves up to -160dBm/Hz noise spectral density with excellent SFDR.

The DAC is powered by a 1.8V and 1.2V analog supply, a 1.8-2.1V output supply and a 0.75V digital supply.

Key features

  • 7nm FinFet
  • 12-bit resolution
  • 8GSPS update rate
  • 0dBm CW output power
  • Differential 20mA current (sink) output
  • 3GHz output bandwidth
  • -158dBm/Hz noise spectral density
  • 64dBc SFDR at FO=1.7GHz, -1dBFS including HD2, HD3
  • Embedded direct digital synthesis (DDS) module
  • Functional from -40°C to 125°C

Block Diagram

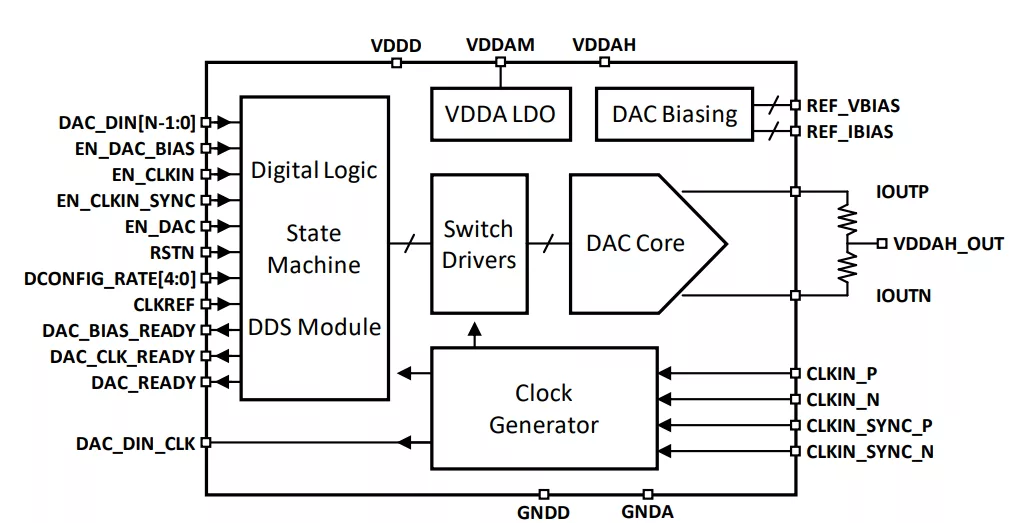

ODT-DAC-12B8G-7 block diagram

Applications

  • General purpose software defined radio
  • DOCSIS transmitter
  • Cellular base station
  • Broadband communications
  • Wideband satellite transmitter

What’s Included?

  • Datasheet
  • Hard GDS Database (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model (as appropriate)
  • Integration and Customer Support
