10GHz to 15GHz Power Detector
The WEA1015PD130G is a differential ended envelope detector of 500mV output voltage .
Overview
The WEA1015PD130G is a differential ended envelope detector of 500mV output voltage . It has a differential input and is capable of detecting signals over a wide dynamic range, from –26dBm to 10dBm.The baseband part is used as an amplification stage for the RF part. The WEA1015PD130G is well suited for power control in microwave Backhaul,5G and SatCom.
Key features
- RF Broadband, Low noise, Low power
- Quiescent Current: 10mA
- Leakage Current: 1uA
- Input frequency: 10GHz to 15GHz
- Dynamic Range -26dBm to 10dBm
- 440MHz baseband bandwidth@3dB
- SNR(dB):46.14@60oC
- Input Voltage:528@60oC(typ)
- Integrated noise (V) (1MHz to 330MHz):2.6@60oC(typ)
Block Diagram

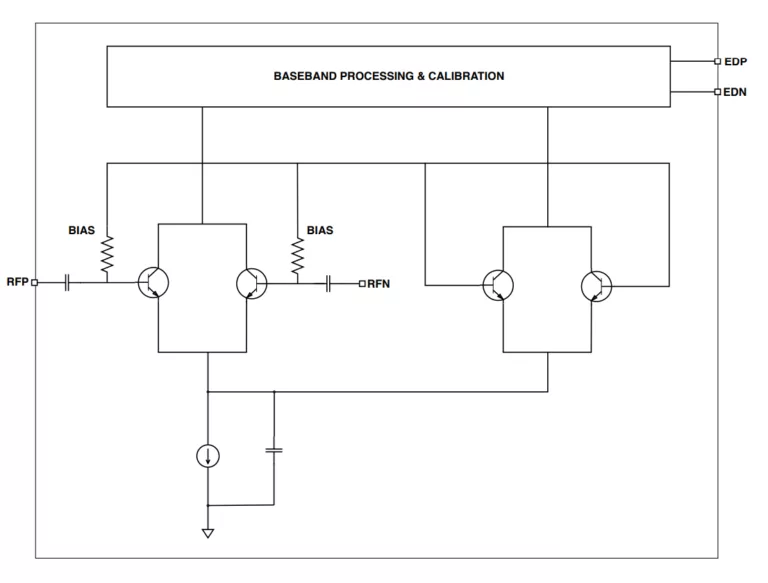

WEA1015PD130G block diagram
Applications
- Microwave Backhaul
- 5G and mm-Wave Wireless Infrastructure
- Satellite Communications
