Vendor: Certus Semiconductor Category: GPIO

1.8V/3.3V Switchable GPIO in TSMC 28nm

A TSMC 28nm Wirebond I/O Library with a switchable 1.8V/3.3V GPIO, with Specialized RF Wirebond Cells for LNAs.

Contact Provider Request Datasheet
TSMC 28nm View all specifications

Overview

A TSMC 28nm Wirebond I/O Library with a switchable 1.8V/3.3V GPIO, with Specialized RF Wirebond Cells for LNAs.

A key attribute of this silicon-proven, inline library is to detect and adjust to a VDDIO supply of 1.8V or 3.3V during system operation. The GPIO can be configured as input, output, open-source, or open-drain with an optional 60kohm pull-up or pull-down resistor. Digital cells for 25MHz, 75MHz, and 150MHz allow optimization across SSO currents & power. Cells for I/O, core power & ground with built-in ESD circuitry are included. The library meets 2kV HBM, 500V CDM, and 2kV IEC 61000-4-2 standards.

Operating Conditions

Parameter Value
VDDIO 1.8V or 3.3V
Core 0.9V
VREF 1.8V
Cell Size 65x50um
Tj -40C to 125C
Max Load1 50pF (10pF at speed)

Cell Summary

Cell Name Description
IO_NS 150MHz, 1.8V/3.3V I/O, N/S Orientation
IO_EW 150MHz, 1,8V/3.3V I/O, E/W Orientation
IO75_NS 75MHz, 1.8V/3,3V I/O, N/S Orientation
IO75_EW 75MHz, 1.8V/3.3V I/O, E/W Orientation
IO25_NS 25MHz, 1.8V/3.3V I/O, N/S Orientation
IO2_EW 25MHz, 1.8V/3.3V I/O, E/W Orientation

 Supported Standards

  • RGMII,   eMMc,    ONFI,  SPI,  QSPI,   LVCMOS,     LPDDR,  I2C, DDC, CEC, SMBus

Key features

  • Multi-voltage, 1.8V/3.3V, operation
  • 25MHz, 75Mhz, & 150MHz GPIO speed options
  • Full-speed output enable
  • Indepedent power sequencing
  • Shorted output protection
  • Schmitt trigger receiver
  • 60Kohm selectable pull-up or pull-down resistor
  • ESD: 2kV HBM, 500V CDM, 2kV IEC 61000-4-2

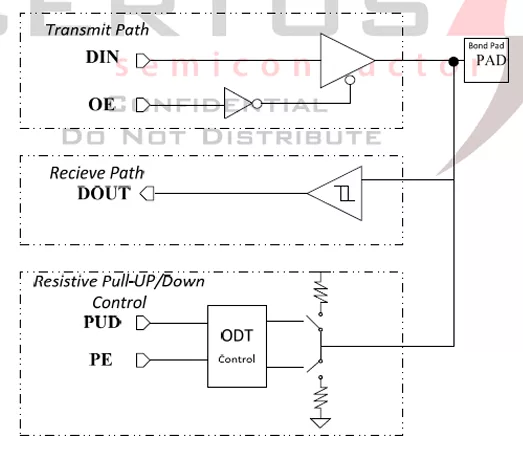

Block Diagram

VG28 block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
