Vendor: Dolphin Semiconductor Category: Audio Codec

Up to 105 dB of SNR, 24-bit stereo CODEC with PDM to PWM transmodulator DAC and embedded regulator

The sCODa-MT1-LR.06 is an audio CODEC which provides the insurance of the best sound quality after integration into a SoC for Set…

Contact Provider Request Datasheet
TSMC 28nm Silicon Proven View all specifications

Overview

The sCODa-MT1-LR.06 is an audio CODEC which provides the insurance of the best sound quality after integration into a SoC for Set-Top-Box or DTV applications.
It benefits from unique features, such as the AGC to automaticaly adapt the voice level and a wind noise filter enabling the best recording quality.
Moreover its ultra small area ensures a cost-effective SoC integration to Fabless companies.

Key features

  • Low BoM thanks to Jerkless and PLL-less features
  • Low noise embedded linear regulator for best resilience to power supply noise
  • Automatic Gain Control (AGC)
  • Programmable Wind Noise Filter

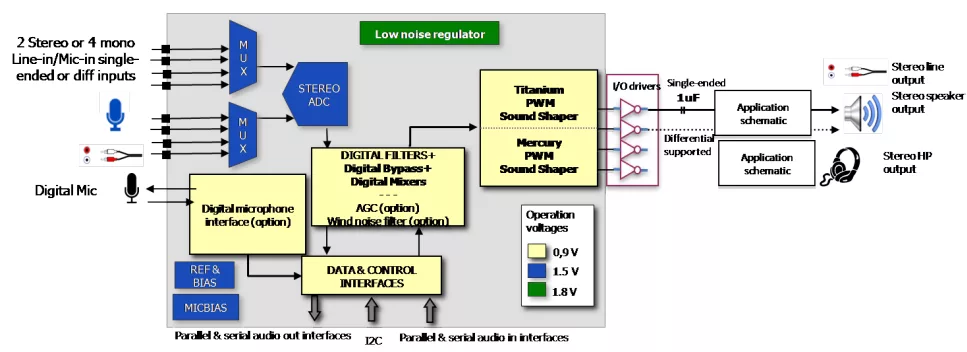

Block Diagram

sCODa-MT1-VD-LR.06_TSMC_28_HPM block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 28nm 28nm 280 nm Silicon Proven

Specifications

Identity

Part Number
sCODa-MT1-VD-LR.06_TSMC_28_HPM
Vendor
Dolphin Semiconductor

Provider

Dolphin Semiconductor
HQ: France
Dolphin Semiconductor is a leading provider of semiconductor IP solutions, specializing in mixed signal IP design targeting markets such as Industrial, High-Performance Computing, Consumer Electronics, IoT and Automotive. Dolphin Semiconductor cutting-edge technology IPs in power management, high-quality audio, power metering, and design safety/robustness, allow their customers to accelerate design cycles, foster faster time-to-market and build products that address the challenges of any industry and support a more sustainable world. With a customer-centric approach, Dolphin Semiconductor provides exceptional support for successful project outcomes.
Contact Dolphin Semiconductor
